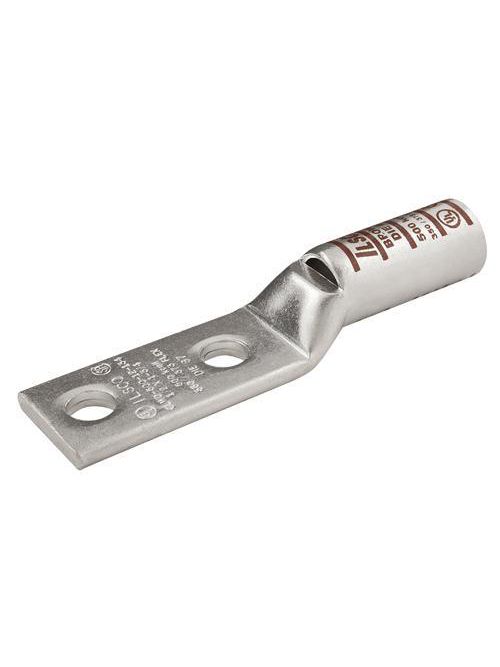

ILSCO CLWN-500-38-1 500 kcmil 3/8 Inch Stud Electrotinned Copper Long Barrel 1-Hole Compression Cable Lug

Specifications

• UPC Code: 78366968582
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil
• Conductor Size CU (Primary, run, main, line): 500 kcmil
• Flex Conductor Range: 350 G,H,I,K,M 373.7 DLO
• Flex Conductor Size (Class G): 350 G
• Flex Conductor Size (Class H): 350 H
• Flex Conductor Size (Class I): 350 I
• Flex Conductor Size (Class K): 350 K
• Flex Conductor Size (Class M): 350 M
• Flex Conductor Size (Class DLO): 373.7 DLO
• Expanded Conductor Range: 500 kcmil - 250 kcmil
• Expanded Conductor Size: 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
• Mounting Bolt/Stud Size: 3/8/2020
• Length (IN): 4.919
• Length (mm): 124.9426
• Width (IN): 1.062
• Width (mm): 26.9748
• Height (IN): 1.107
• Height (mm): 28.1178
• Weight (LB): 0.472660104
• Barrel Length (IN): 2.25
• Barrel Length (mm): 57.15
• Dimension G (IN): 0.414
• Dimension G (mm): 10.5156
• Inside Diameter (IN): 0.828
• Inside Diameter (mm): 21.0312
• Mounting Bolt/Stud Size (mm): 965.2
• Mounting Hole Diameter (IN): 0.406
• Mounting Hole Diameter (mm): 10.3124
• Mounting Hole Spacing (IN): 1
• Mounting Hole Spacing (mm): 25.4
• Outside Diameter (IN): 1.062
• Outside Diameter (mm): 26.9748
• Strip Length (mm): 58.7375
• Tang Length (IN): 1.937
• Tang Length (mm): 49.1998
• Tang Thickness (IN): 0.29
• Tang Thickness (mm): 7.366
• Tang Width (IN): 1.047
• Tang Width (mm): 26.5938
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Brown
• Direct Burial: TRUE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-87
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: TRUE
• Number of Mounting Holes: 2
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-87, DE-OX-8OZ, TB-6DF1000-P
