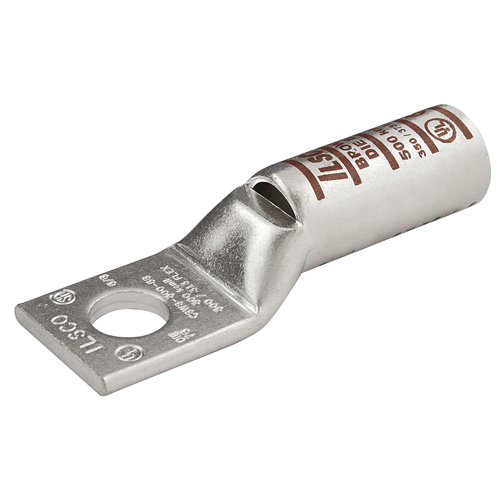

ILSCO CLWS-650-12 CU CMP W/SYT 650K

Specifications

• UPC Code: 78366964731
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 650 kcmil
• Conductor Size CU (Primary, run, main, line): 650 kcmil
• Flex Conductor Range: 500 G,H,I, K,M 535.3 DLO
• Flex Conductor Size (Class G): 500 G
• Flex Conductor Size (Class H): 500 H
• Flex Conductor Size (Class I): 500 I
• Flex Conductor Size (Class K): 500 K
• Flex Conductor Size (Class M): 500 M
• Flex Conductor Size (Class DLO): 535.3 DLO
• Expanded Conductor Range: 650 kcmil - 350 kcmil
• Expanded Conductor Size: 650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil
• Mounting Bolt/Stud Size: 1/2/2020
• Length (IN): 4.806
• Length (mm): 122.0724
• Width (IN): 1.764
• Width (mm): 44.8056
• Height (IN): 1.262
• Height (mm): 32.0548
• Weight (LB): 0.652174397
• Barrel Length (IN): 2.687
• Barrel Length (mm): 68.2498
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Inside Diameter (IN): 0.958
• Inside Diameter (mm): 24.3332
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 1.217
• Outside Diameter (mm): 30.9118
• Strip Length (mm): 69.8246
• Tang Length (IN): 1.25
• Tang Length (mm): 31.75
• Tang Thickness (IN): 0.259
• Tang Thickness (mm): 6.5786
• Tang Width (IN): 1.764
• Tang Width (mm): 44.8056
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Pink
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-99
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: FALSE
• Number of Mounting Holes: 1
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-99, DE-OX-8OZ, TB-6DF1000-P
