ILSCO CRA-2/0-38M CU CMP 2/0 3/8 T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CRA-2/0-38M
North Coast Part # 933062

Specifications

  • UPC Code: 78366909833
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str
  • Conductor Size CU (Primary, run, main, line): 3/0 Str
  • Flex Conductor Range: 2/0 G,H,I,K,M,DLO
  • Flex Conductor Size (Class G): 2/0 G
  • Flex Conductor Size (Class H): 2/0 H
  • Flex Conductor Size (Class I): 2/0 I
  • Flex Conductor Size (Class K): 2/0 K
  • Flex Conductor Size (Class M): 2/0 M
  • Flex Conductor Size (Class DLO): 2/0 DLO
  • Mounting Bolt/Stud Size: 3/8/2020
  • Length (IN): 2.16
  • Length (mm): 54.864
  • Width (IN): 0.895
  • Width (mm): 22.733
  • Height (IN): 0.69
  • Height (mm): 17.526
  • Weight (LB): 0.076
  • Barrel Length (IN): 0.675
  • Barrel Length (mm): 17.145
  • Dimension G (IN): 0.465
  • Dimension G (mm): 11.811
  • Inside Diameter (IN): 0.511
  • Inside Diameter (mm): 12.9794
  • Mounting Bolt/Stud Size (mm): 965.2
  • Mounting Hole Diameter (IN): 0.402
  • Mounting Hole Diameter (mm): 10.2108
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 0.63
  • Outside Diameter (mm): 16.002
  • Tang Length (IN): 0.94
  • Tang Length (mm): 23.876
  • Tang Thickness (IN): 0.12
  • Tang Thickness (mm): 3.048
  • Tang Width (IN): 0.895
  • Tang Width (mm): 22.733
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Orange
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • NEBS Rating: No
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Number of Mounting Holes: 1
  • Sight Window: TRUE
  • Slotted: FALSE
  • Tang End Shape: Round
  • Undrilled: FALSE
  • Bag Quantity: 1
  • Upsell: CSWS-2/0-38

Overview

UPC 78366909833

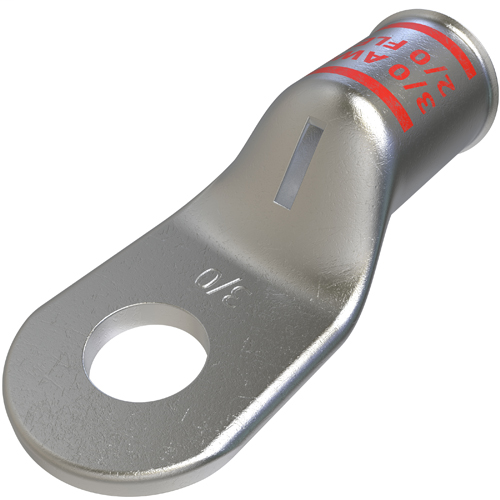

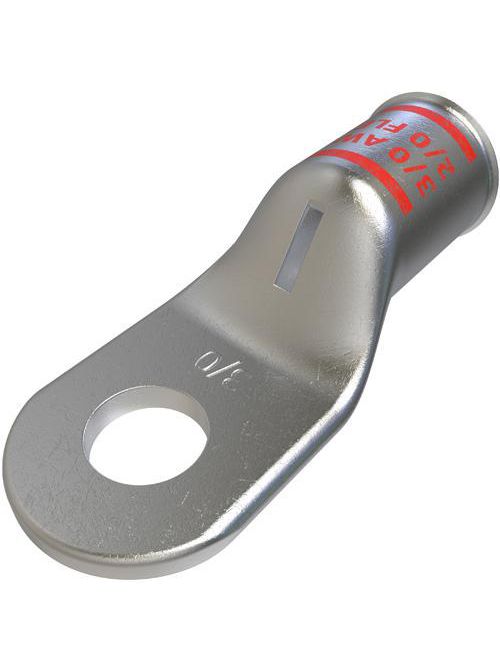

Item Long Description ILSCO Copper Mining Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180 connecting angle, Copper Primary Conductor 3/0 Str, sight window, Round tang end, flex conductor range 2/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Orange, primary color Silver, die index I-50,
GTiN 00783669098334
Type CRAM:MINING LUGS
Material Copper
Applications Copper Mining Lug
Bolt Size 3/8 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Size L:2.16;W:0.895;H:0.69 IN
Color Silver
Voltage 35,000 Volt
