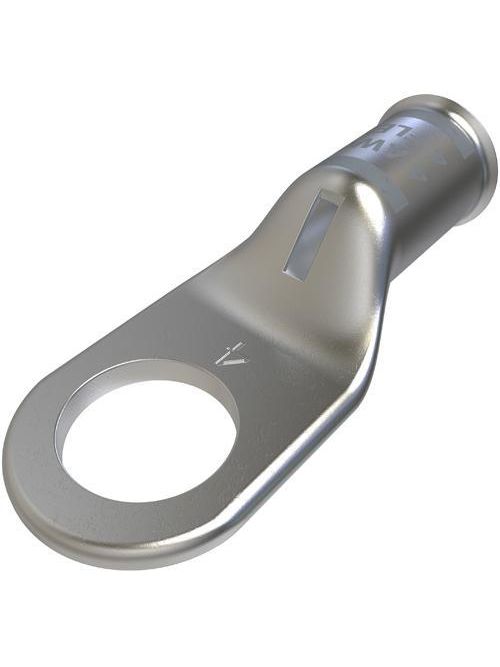

ILSCO CRA-4-38M CU CMP 4 3/8 T UL C

Specifications

• UPC Code: 78366909814
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str
• Conductor Size CU (Primary, run, main, line): 4 Str
• Flex Conductor Range: 4 G,H,I,K,M,DLO
• Flex Conductor Size (Class G): 4 G
• Flex Conductor Size (Class H): 4 H
• Flex Conductor Size (Class I): 4 I
• Flex Conductor Size (Class K): 4 K
• Flex Conductor Size (Class M): 4 M
• Flex Conductor Size (Class DLO): 4 DLO
• Mounting Bolt/Stud Size: 3/8/2020
• Length (IN): 1.53
• Length (mm): 38.862
• Width (IN): 0.625
• Width (mm): 15.875
• Height (IN): 0.435
• Height (mm): 11.049
• Weight (LB): 0.02
• Barrel Length (IN): 0.475
• Barrel Length (mm): 12.065
• Dimension G (IN): 0.313
• Dimension G (mm): 7.9502
• Inside Diameter (IN): 0.286
• Inside Diameter (mm): 7.2644
• Mounting Bolt/Stud Size (mm): 965.2
• Mounting Hole Diameter (IN): 0.402
• Mounting Hole Diameter (mm): 10.2108
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.375
• Outside Diameter (mm): 9.525
• Tang Length (IN): 0.695
• Tang Length (mm): 17.653
• Tang Thickness (IN): 0.08
• Tang Thickness (mm): 2.032
• Tang Width (IN): 0.625
• Tang Width (mm): 15.875
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Gray
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• NEBS Rating: No
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Standard
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• Flared End: FALSE
• Mounting Hole Type: Thru
• Number of Mounting Holes: 1
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Round
• Undrilled: FALSE
• Bag Quantity: 1
• Upsell: CSWS-4-38
