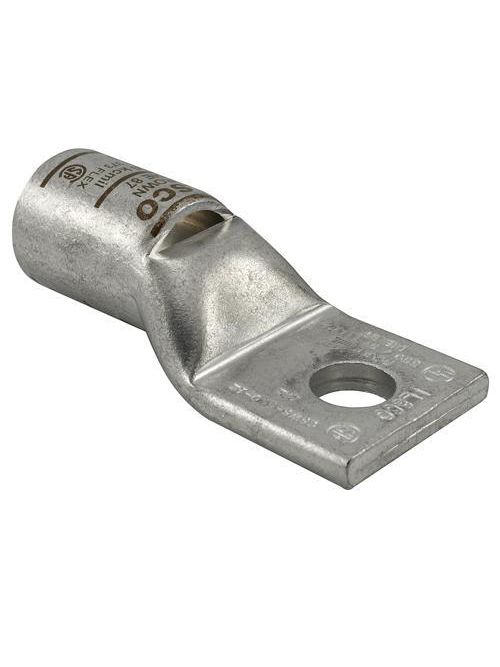

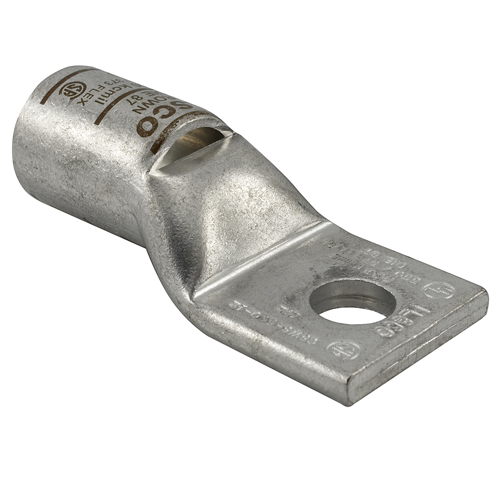

ILSCO CSWS-500-58 UL/CSA Listed 500 MCM 21/32 Inch Mounting Hole Copper Compression Lug
$14.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CSWS-500-58
North Coast Part # 672052

Specifications

  • UPC Code: 78366964529
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil
  • Conductor Size CU (Primary, run, main, line): 500 kcmil
  • Flex Conductor Range: 350 G,H,I,K,M 373.7 DLO
  • Flex Conductor Size (Class G): 350 G
  • Flex Conductor Size (Class H): 350 H
  • Flex Conductor Size (Class I): 350 I
  • Flex Conductor Size (Class K): 350 K
  • Flex Conductor Size (Class M): 350 M
  • Flex Conductor Size (Class DLO): 373.7 DLO
  • Expanded Conductor Range: 500 kcmil - 250 kcmil
  • Expanded Conductor Size: 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
  • Mounting Bolt/Stud Size: 5/8/2020
  • Length (IN): 3.469
  • Length (mm): 88.1126
  • Width (IN): 1.535
  • Width (mm): 38.989
  • Height (IN): 1.097
  • Height (mm): 27.8638
  • Weight (LB): 0.342285255
  • Barrel Length (IN): 1.3
  • Barrel Length (mm): 33.02
  • Dimension G (IN): 0.671
  • Dimension G (mm): 17.0434
  • Inside Diameter (IN): 0.828
  • Inside Diameter (mm): 21.0312
  • Mounting Hole Diameter (IN): 0.656
  • Mounting Hole Diameter (mm): 16.6624
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 1.052
  • Outside Diameter (mm): 26.7208
  • Strip Length (mm): 34.5948
  • Tang Length (IN): 1.437
  • Tang Length (mm): 36.4998
  • Tang Thickness (IN): 0.234
  • Tang Thickness (mm): 5.9436
  • Tang Width (IN): 1.535
  • Tang Width (mm): 38.989
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Brown
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • ILSCOs Die Catalog Number: ILD-87
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 1
  • Sight Window: TRUE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-87, DE-OX-8OZ, TB-6DF1000-P

Overview

UPC 78366964529
GTiN 00783669645293
Voltage 600 Volt
Type CSWS:1 HOLE SHORT W/SIGHT
Material Copper
Conductor Size 500 kcmil
Applications Copper Compression Lug
Standard UL File Number: E6207,UL Specifications: UL 486A-B,NEBS Rating: LEVEL 3,CSA File Number: LR-29601
Strip Length 1.362 in
Bolt Size 5/8 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Outside Diameter 1.062 in
Overall Length 3.469 in
Barrel Length 1.300 in
Inside Diameter 0.828 in
Mounting Hole Size 0.656 in
Color Coding Brown
Sub Brand SureCrimp
Finish Electro Tin Plated
Size L:3.469;W:1.535;H:1.097 IN
Color Silver
Barrel Type Straight, Short Chamfered Entry
Stud Size 5/8 in
Number of Holes 1
