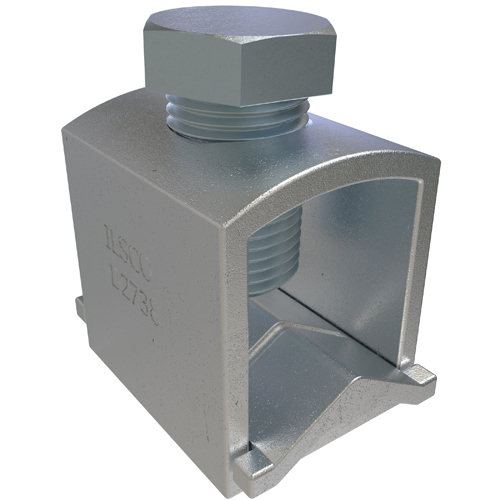

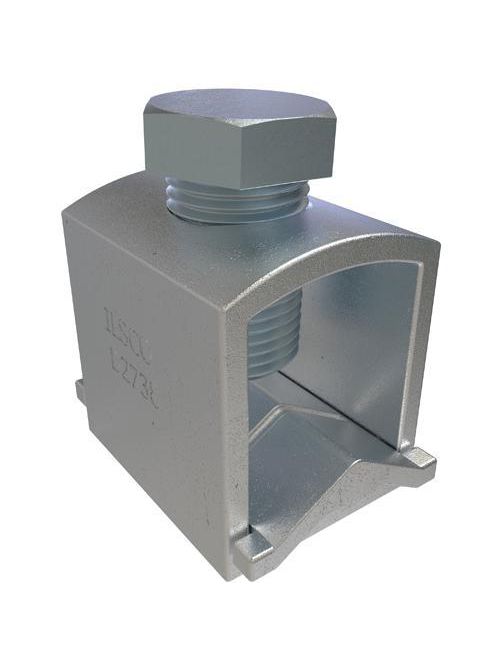

ILSCO D-2738 CU MEC 500-1/0 T UR CS
$92.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # D-2738
North Coast Part # 683308

Specifications

  • UPC Code: 78366902825
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 1/0 Str
  • Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Drive Size Main: 4-Mar
  • Drive Type Main: External Hex
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Mar
  • Wire Binding Torque: 375
  • Length (IN): 1.686
  • Length (mm): 42.8244
  • Width (IN): 1.125
  • Width (mm): 28.575
  • Height (IN): 1.471
  • Height (mm): 37.3634
  • Weight (LB): 0.459
  • Dimension G (IN): 0.33
  • Mounting Bolt/Stud Size (mm): 36068
  • Mounting Hole Diameter (IN): 0.196
  • Mounting Hole Diameter (mm): 4.9784
  • Mounting Hole Spacing (IN): 0.719
  • Mounting Hole Spacing (mm): 18.2626
  • Size of Boss (IN): 0.3
  • Size of Boss (mm): 7.62
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Silver
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Recognized
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Tap
  • Number of Conductors: 1
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Style of Boss: Round
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Categories

Overview

UPC 78366902825
GTiN 00783669028256
Length 1.375 in
Width 1.130 in
Voltage 2000 Volt
Type COPP:BOX TYPE W/PLATE
Material Copper
Applications Box-Type Mechanical Lug with Pressure Plate
Height 1.416 in
Standard UL Specifications: Tested To UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Pkg Qty 10
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
