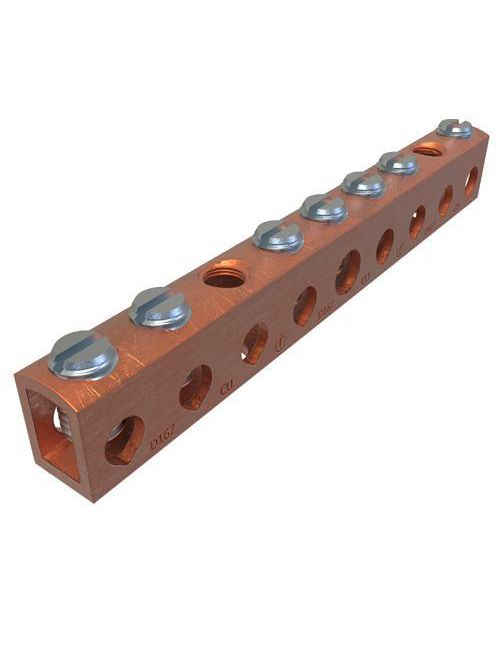

ILSCO D167-6 UL Listed 14-6 AWG Tap Range 14-4 AWG Main Range 6 Tap Ground Bar

Specifications

• UPC Code: 78366916105
• UNSPSC Code: 39121408
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
• Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Drive Type Main: Slotted
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 4-Jan
• Wire Binding Torque: 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
• Length (IN): 3.547
• Width (IN): 0.342
• Width (mm): 8.6868
• Height (IN): 0.482
• Height (mm): 12.2428
• Weight (LB): 0.076340852
• Dimension G (IN): 0.584
• Dimension G (mm): 14.8336
• Mounting Bolt/Stud Size (mm): 254
• Mounting Hole Diameter (IN): 0.203
• Mounting Hole Diameter (mm): 5.1562
• Mounting Hole Position (IN): 2 & 7
• Mounting Hole Spacing (IN): 1.984
• Mounting Hole Spacing (mm): 50.3936
• Material: Copper
• Conductor Material: Copper
• Wire Binding Hardware Material: Steel
• Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
• Color: Copper
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Recognized,UL 467 Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Mounting Hole Type: Thru
• Number of Conductors: 1
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports Main: 0
• Number of Ports Tap: 6
• Bag Quantity: 1
