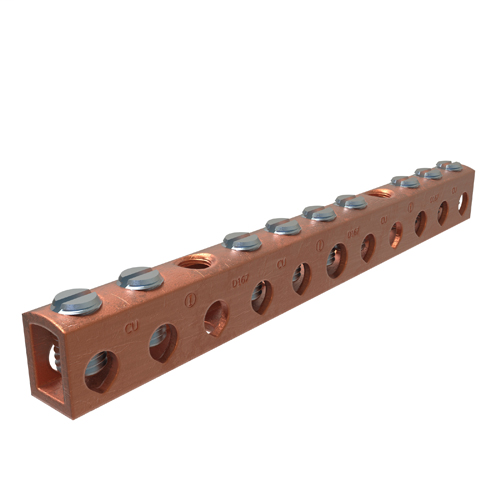

ILSCO D167-8 14 to 4 AWG Main 14 to 6 AWG Tap 4-7/16 x 11/32 Inch Copper Neutral/Ground Bar
$27.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # D167-8
North Coast Part # 157276

Specifications

  • UPC Code: 78366916121
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Jan
  • Wire Binding Torque: 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
  • Length (IN): 4.344
  • Width (IN): 0.342
  • Width (mm): 8.6868
  • Height (IN): 0.482
  • Height (mm): 12.2428
  • Weight (LB): 0.094232799
  • Dimension G (IN): 0.984
  • Dimension G (mm): 24.9936
  • Mounting Bolt/Stud Size (mm): 254
  • Mounting Hole Diameter (IN): 0.203
  • Mounting Hole Diameter (mm): 5.1562
  • Mounting Hole Position (IN): 4 & 9
  • Mounting Hole Spacing (IN): 1.984
  • Mounting Hole Spacing (mm): 50.3936
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Copper
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Recognized,UL 467 Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports Main: 0
  • Number of Ports Tap: 8
  • Bag Quantity: 1

Categories

Overview

UPC 78366916121
GTiN 00783669161212
Length 4.437 in
Width 0.343 in
Voltage 2000 Volt
Type D167:GROUND BARS
Material Copper
Applications Neutral Bar
Height 0.750 in
Connection Type Screw
Pkg Qty 20
Family Brand Name ILSCO
Used With Tap Connector/Grounding Connector
Sub Brand ClearChoice
Finish NA
Color Copper
Number of Conductors 1
Number of Ports 8
TC Connection Mechanical
