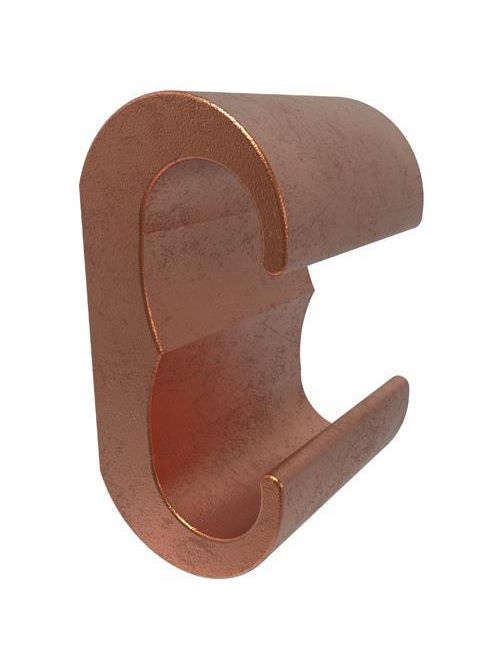

ILSCO ELT-1 UL/CSA Listed 6 AWG - 2 SOL Main Range 6 AWG - 2 SOL Tap Range Copper Crimp

$18.77/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UPC Code: 78366925730
UNSPSC Code: 39121448
Dual Rated: FALSE
Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 6 Str
Conductor Range CU Solid (Primary, run, main, line): 2 Sol - 6 Sol
Conductor Size CU (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2 Str,3 Str,4 Str,5 Str,6 Str
Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 6 Str
Conductor Range CU Solid (Secondary, tap, load): 2 Sol - 6 Sol
Conductor Size CU (Secondary, tap, load): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2 Str,3 Str,4 Str,5 Str,6 Str
Length (IN): 1.17
Width (IN): 0.58
Width (mm): 14.732
Height (IN): 0.75
Weight (LB): 0.205
Material: Copper
Conductor Material: Copper
Connector Finish: Bare
Color: Copper
Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor Type: Solid,Stranded
Bag Quantity: 1

UPC	78366925730
Item Long Description	ILSCO Copper Compression Grounding E Crimp, Copper material, Bare plated connector,Copper Primary Conductor 2 Str - 6 Str and 2 Sol - 6 Sol, Copper Secondary Conductor 2 Sol - 6 Sol and 2 Str - 6 Str, primary color Copper, die index ND-C,
GTiN	00783669257304
Width	3/4 in
Type	ELT:COPPER E CRIMP
Material	Copper Alloy
Applications	For Copper Conductor, Direct Burial and used in Ground Grid Applications
Pkg Qty	50
Family Brand Name	ILSCO
Sub Brand	ClearChoice
Size	L:1.17;W:0.58;H:0.75 IN
Color	Copper
Temperature Rating	NA C
Voltage	600 Volt
