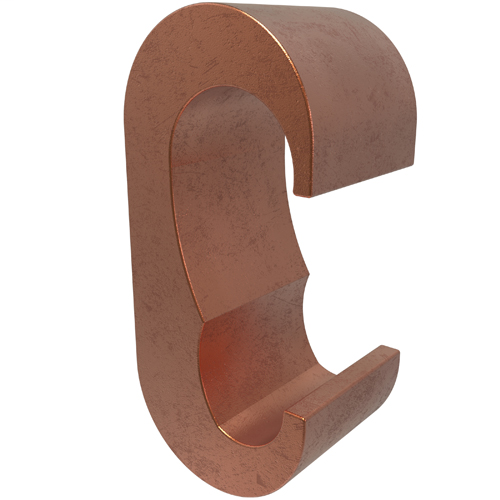

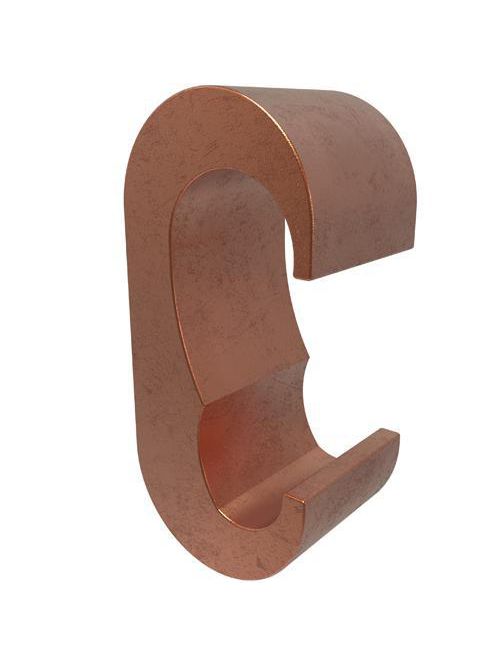

ILSCO ELT-5 UL/CSA Listed 3/0 AWG - 250 MCM Main Range 6-2/0 AWG Tap Range Copper Crimp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$55.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # ELT-5
North Coast Part # 551162

Specifications

  • UPC Code: 78366925738
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 3/0 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 6 Str
  • Conductor Range CU Solid (Secondary, tap, load): 2/0 Sol - 6 Sol
  • Conductor Size CU (Secondary, tap, load): 2/0 Sol,1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Rebar Size(s) Main: #4 (1/2)
  • Rebar Size(s) Secondary: #3 (3/8)
  • Ground Rod Size: 2-Jan
  • Length (IN): 1.968
  • Width (IN): 0.922
  • Height (IN): 0.75
  • Weight (LB): 0.221
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Bare
  • Color: Copper
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Conductor Type: Solid,Stranded
  • ILSCOs Die Index Number: 997
  • Bag Quantity: 1

Overview

GTiN 00783669257380
Finish Untreated
Width 0.750 in
Type ELT:COPPER E CRIMP
Material Copper
Applications Grounding Connector, Direct Burial
Family Brand Name ILSCO
Sub Brand ClearChoice
Product UPC 78366925738
Size L:1.968;W:0.922;H:0.75 IN
Color Copper
Temperature Rating NA C
