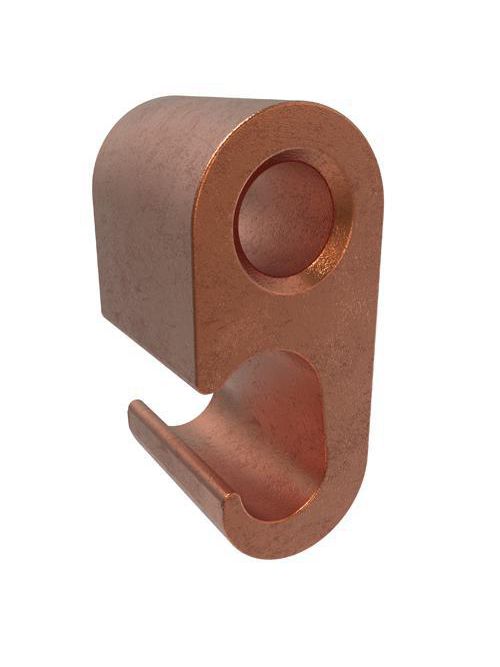

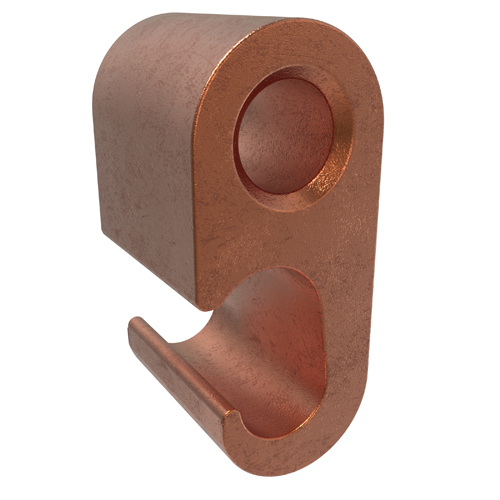

ILSCO GGC-1 6 to 2 AWG Run or Tap Copper Alloy Grounding Grid Tap Connector
$41.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GGC-1
North Coast Part # 345568

Specifications

  • UPC Code: 78366926050
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 6 Str
  • Conductor Range CU Solid (Primary, run, main, line): 2 Sol - 6 Sol
  • Conductor Size CU (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 6 Str
  • Conductor Range CU Solid (Secondary, tap, load): 2 Sol - 6 Sol
  • Conductor Size CU (Secondary, tap, load): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2 Str,3 Str,4 Str,5 Str,6 Str
  • Length (IN): 0.625
  • Length (mm): 15.875
  • Width (IN): 0.75
  • Width (mm): 19.05
  • Height (IN): 1.4
  • Height (mm): 35.56
  • Weight (LB): 0.157
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Bare
  • Color: Copper
  • Direct Burial: TRUE
  • CSA File Number: LR-5465
  • CSA Standard: C22.2 No. 41
  • UL Control Number: 667P
  • UL File Number: E34440
  • UL / CULUS Specification: UL 467 Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Hard
  • Conductor Type: Solid,Stranded
  • Number of Mounting Holes: 0
  • Bag Quantity: 1
  • CrossSell: ILD-O, DE-OX-C-8OZ, TB-12U1000-P

Overview

UPC 78366926050
GTiN 00783669260502
Type GGC:GRD GRID TAP CONNECTOR
Applications Copper Compression Grounding Grid
Family Brand Name ILSCO
Sub Brand Permaground
Size L:0.625;W:0.75;H:1.4 IN
Color Copper
Temperature Rating NA C
