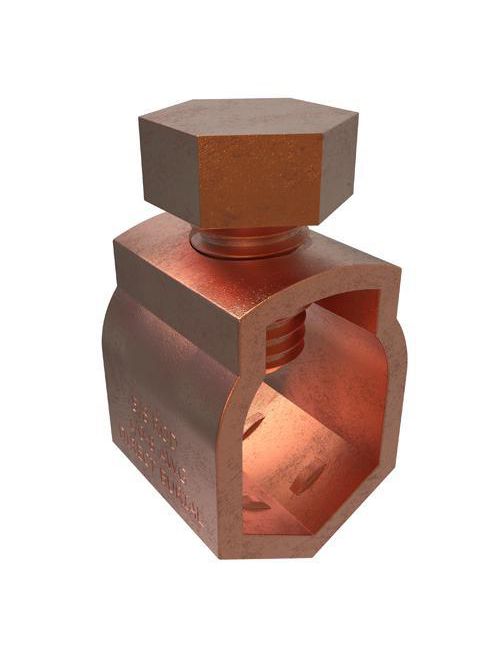

ILSCO GRC-68 BRZ MEC 2-8 B UL CSA 3
Product image thumbnail 0
Product image thumbnail 1
$31.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GRC-68
North Coast Part # 209635

Specifications

  • UPC Code: 78366926725
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Wire Combinations: 1/0 Str - 8 Str when using 5/8 rod
  • Conductor Range Str with Ground Rod: 2 Str - 8 Str
  • Conductor Size with Ground Rod: 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conductor Range Str with Rebar: 1/0 Str - 8 Str
  • Conductor Size with Rebar: 1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,NA
  • Rebar Size(s) Main: #5 (5/8)
  • Ground Rod Size: 3/4,5/8
  • Drive Size Main: 4-Mar
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 2-Jan
  • Wire Binding Screw Size (mm): 304.8
  • Wire Binding Torque: 1/0 AWG = 180,1 - 2 AWG = 150,4 - 6 AWG = 110,8 AWG = 75
  • Length (IN): 1
  • Length (mm): 25.4
  • Width (IN): 1.028
  • Width (mm): 26.1112
  • Height (IN): 1.834
  • Height (mm): 46.5836
  • Weight (LB): 0.454
  • Material: Bronze
  • Conductor Material: Copper
  • Connector Finish: Bright Dip
  • Wire Binding Hardware Material: Silicon bronze
  • Wire Binding Hardware Finish: Bright Dip
  • Direct Burial: TRUE
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 667P
  • UL File Number: E34440
  • UL / CULUS Specification: UL 467 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • RUS Listed: FALSE
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Wire Orientation: Parallel
  • Bag Quantity: 1

Overview

UPC 78366926725
GTiN 00783669267259
Type GRC:GRD ROD CLAMP
Applications Ground Rod Clamp
Family Brand Name ILSCO
Sub Brand Permaground
Finish Bright Dip
Material Bronze
Number of Conductors 1
TC Connection Mechanical
