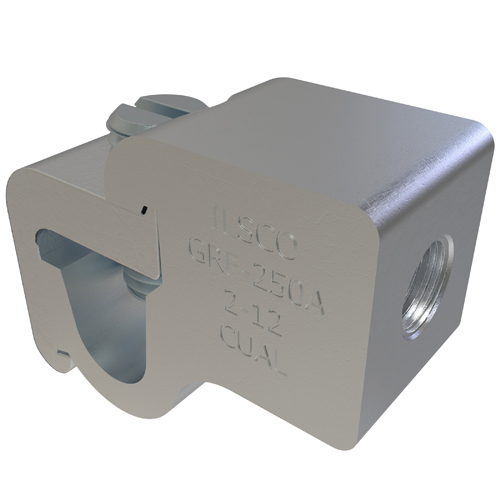

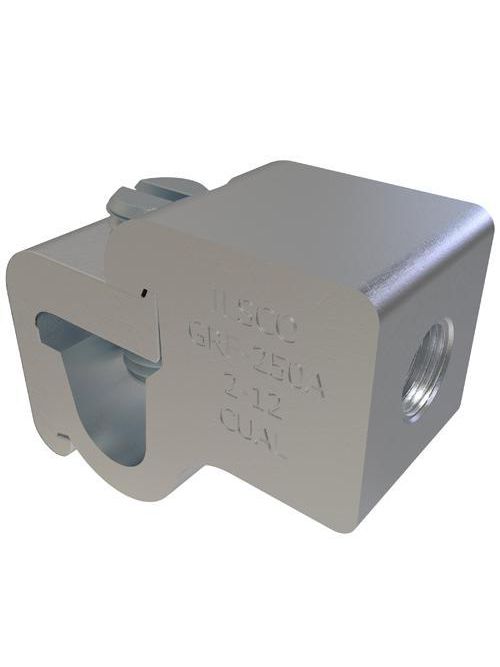

ILSCO GRF-2A AL MEC 2-12 1/4-20T
$45.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GRF-2A
North Coast Part # 338299

Specifications

  • UPC Code: 78366928261
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 12 Str
  • Conductor Range CU Solid (Primary, run, main, line): 2 Sol - 12 Sol
  • Conductor Size CU (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 2 Str - 12 Str
  • Conductor Range AL Solid (Primary, run, main, line): 2 Sol - 12 Sol
  • Conductor Size AL (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
  • Conductor Size Steel Strand: 16-May
  • Drive Type Main: Slotted
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-May
  • Wire Binding Torque: 10 - 12 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
  • Length (IN): 1.264
  • Length (mm): 32.1056
  • Width (IN): 0.563
  • Width (mm): 14.3002
  • Height (IN): 0.999
  • Height (mm): 25.3746
  • Weight (LB): 0.073
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Silver
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366928261
GTiN 00783669282610
Type GRM:GRD CONNECTOR MALE AL/CU
Applications Grounding Connector
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Material Aluminum
Number of Conductors 1
TC Connection Mechanical
