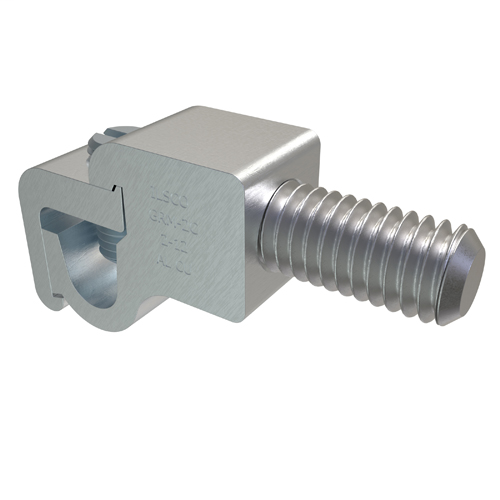

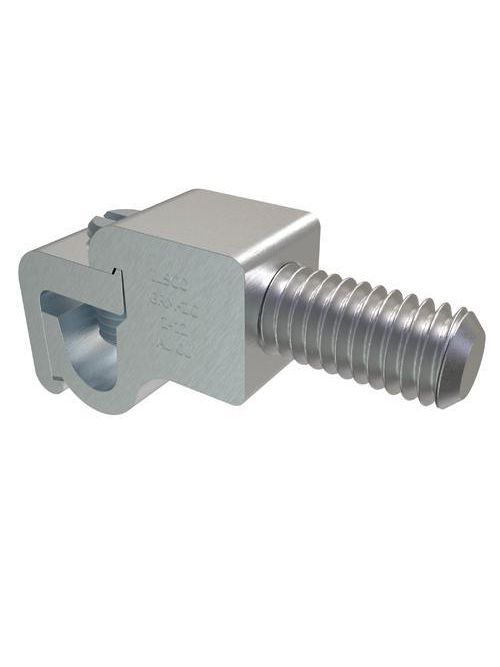

ILSCO GRM-2C AL MEC 2-12 3/8-16 T

Specifications

• UPC Code: 78366932666
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 2 Str - 12 Str
• Conductor Range CU Solid (Primary, run, main, line): 2 Sol - 12 Sol
• Conductor Size CU (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
• Conductor Range AL Stranded (Primary, run, main, line): 2 Str - 12 Str
• Conductor Range AL Solid (Primary, run, main, line): 2 Sol - 12 Sol
• Conductor Size AL (Primary, run, main, line): 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
• Conductor Size Steel Strand: 16-May
• Drive Type Main: Slotted
• Mounting Bolt/Stud Size: 3/8/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 16-May
• Wire Binding Torque: 10 - 12 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
• Length (IN): 2.124
• Length (mm): 53.9496
• Width (IN): 0.563
• Width (mm): 14.3002
• Height (IN): 0.999
• Height (mm): 25.3746
• Weight (LB): 0.101
• Mounting Bolt/Stud Size (mm): 965.2
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Wire Binding Hardware Material: Steel
• Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
• Color: Silver
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 1
• Number of Ports / Wireways: 1
• Number of Ports Main: 1
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
