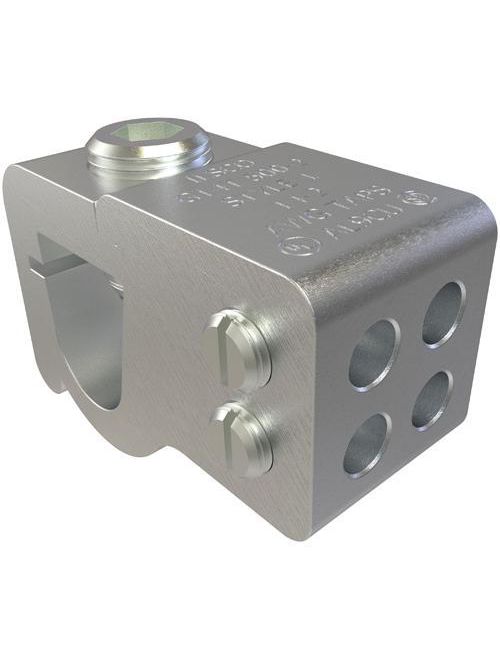

ILSCO GT4T-500-2-1 AL MEC (M)500-35

Specifications

• UPC Code: 78366941132
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 350 kcmil
• Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil
• Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil - 350 kcmil
• Conductor Size AL (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil
• Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 14 Str
• Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range AL Stranded (Secondary, tap, load): 2 Str - 12 Str
• Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 12 Sol
• Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
• Drive Size Main: 8-Mar
• Drive Type Main: Internal Hex
• Drive Type Tap: Slotted
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 8-Mar
• Wire Binding Screw Size (mm): 965.2
• Wire Binding Torque: 10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
• Length (IN): 2.906
• Length (mm): 73.8124
• Width (IN): 1.25
• Width (mm): 31.75
• Height (IN): 1.902
• Height (mm): 48.3108
• Weight (LB): 0.527
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Silver
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 5
• Number of Poles: 1
• Number of Ports Main: 1
• Number of Ports Tap: 4
• Type of accessory: GTC-500
• Wire Orientation: Perpendicular
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
