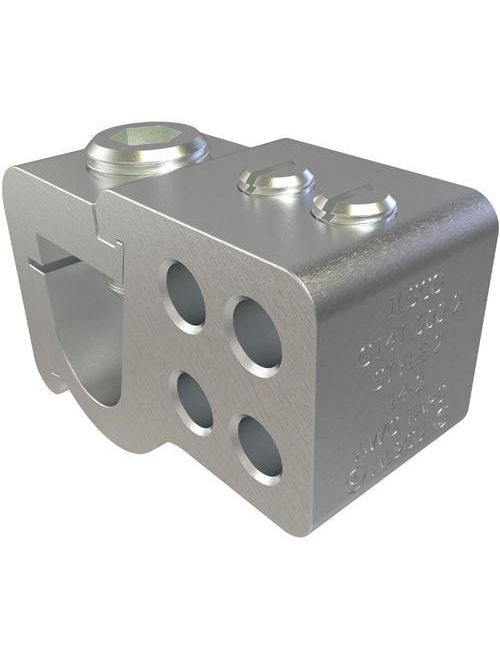

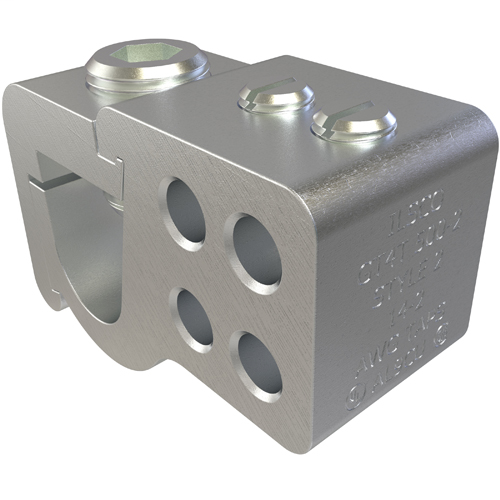

ILSCO GT4T-500-2-2 AL MEC (M)500-35
$151.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GT4T-500-2-2
North Coast Part # 759817

Specifications

  • UPC Code: 78366941239
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 350 kcmil
  • Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil - 350 kcmil
  • Conductor Size AL (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil
  • Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 2 Str - 12 Str
  • Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 12 Sol
  • Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Drive Type Tap: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-Mar
  • Wire Binding Screw Size (mm): 965.2
  • Wire Binding Torque: 10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
  • Length (IN): 2.906
  • Length (mm): 73.8124
  • Width (IN): 1.25
  • Width (mm): 31.75
  • Height (IN): 1.902
  • Height (mm): 48.3108
  • Weight (LB): 0.519
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 5
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 4
  • Type of accessory: GTC-500
  • Wire Orientation: Parallel
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366941239
GTiN 00783669412390
Type GT4T:MULTI TAP AL/CU
Applications Multiple Tap Connector, Lay-In
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Material Aluminum
Number of Conductors 5
Number of Ports 4
TC Connection Mechanical
