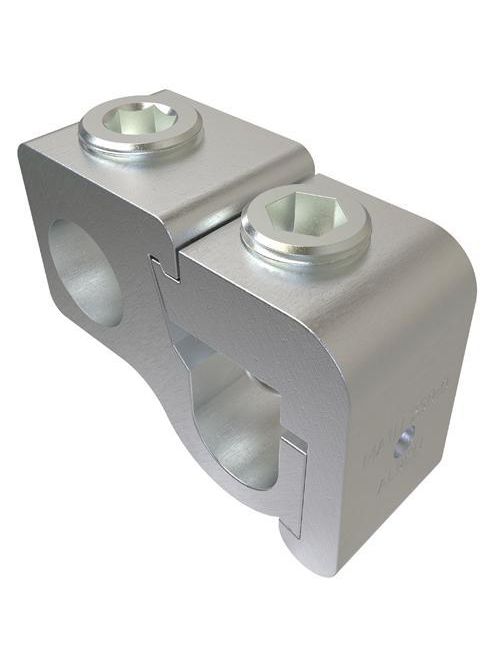

ILSCO GTA-250-250 0.87 x 2 x 1.43 Inch Electrotinned Aluminum Alloy Mechanical Cable Tap Connector
Product image thumbnail 0
Product image thumbnail 1
$19.93/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GTA-250-250
North Coast Part # 16198

Specifications

  • UPC Code: 78366934225
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 1/0 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 1/0 Str
  • Conductor Size AL (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 250 kcmil - 6 Str
  • Conductor Size CU (Secondary, tap, load): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 250 kcmil - 6 Str
  • Conductor Size AL (Secondary, tap, load): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Clamping Bolt Size: 9/16/2018
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Drive Size Tap: 16-May
  • Drive Type Tap: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-May
  • Wire Binding Torque: 275
  • Length (IN): 2.188
  • Width (IN): 0.938
  • Height (IN): 1.652
  • Weight (LB): 0.193
  • Material: Aluminum
  • Clamping Hardware Material: Aluminum
  • Clamping Hardware Finish: Tin
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Type of accessory: GTC-250-350
  • Wire Orientation: Parallel
  • Bag Quantity: 1

Overview

UPC 78366934225
Family Brand Name ILSCO
GTiN 00783669342253
Finish Tin Plated
Color Silver
Type GTA:PARALLEL TAPS AL/CU
Material Aluminum
Number of Conductors 2
Applications Parallel Tap Connector
Temperature Rating 90 C
Number of Ports 1
TC Connection Mechanical
Sub Brand ILSCO
