ILSCO GTA-750-750-W/C 2.37 x 3.37 x 2.43 Inch Electrotinned Aluminum Alloy Mechanical Cable Tap Connector with Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$212.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GTA-750-750-W/C
North Coast Part # 332085

Specifications

  • UPC Code: 78366935656
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 500 kcmil
  • Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 500 kcmil
  • Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
  • Conductor Range CU Stranded (Secondary, tap, load): 750 kcmil - 1/0 Str
  • Conductor Size CU (Secondary, tap, load): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 750 kcmil - 1/0 Str
  • Conductor Size AL (Secondary, tap, load): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Drive Size Main: 2-Jan
  • Drive Type Main: Internal Hex
  • Drive Size Tap: 2-Jan
  • Drive Type Tap: Internal Hex
  • Number of Wire Binding Screws per Port: 2
  • Wire Binding Screw Size: 15/16
  • Wire Binding Torque: 500
  • Length (IN): 5.102
  • Length (mm): 129.5908
  • Width (IN): 4.25
  • Width (mm): 107.95
  • Height (IN): 3.125
  • Height (mm): 79.375
  • Weight (LB): 1.764
  • Material: Aluminum
  • Clamping Hardware Material: Aluminum
  • Clamping Hardware Finish: Tin
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin

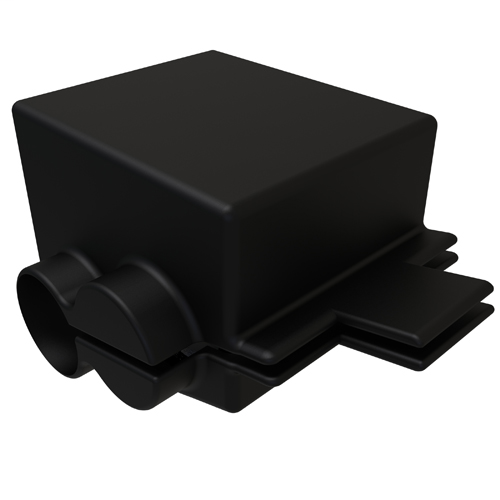

  • Insulation: Supplied with insulating cover
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Temperature Rating: 90°C
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Replacement Parts: GTPC-750-750
  • Wire Orientation: Parallel
  • Bag Quantity: 1

Overview

GTiN 00783669356564
Type Lay-In
Applications For Tap Connector
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand ClearChoice
Product UPC 78366935656
Finish Electro Tin Plated
Color Silver
Material Aluminum
Number of Conductors 2
Conductor Size 500-750 kcmil Main/Primary, 1/0 AWG - 750 kcmil Tap/Secondary
Number of Ports 1
TC Connection Mechanical
Blade Dimensions 2-3/8 in L x 3-3/8 in W x 2-7/16 in H
Used With Copper and Aluminum Conductor
