ILSCO GTA-750-750-W/C 2.37 x 3.37 x 2.43 Inch Electrotinned Aluminum Alloy Mechanical Cable Tap Connector with Cover

Specifications

• UPC Code: 78366935656
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 500 kcmil
• Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 500 kcmil
• Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
• Conductor Range CU Stranded (Secondary, tap, load): 750 kcmil - 1/0 Str
• Conductor Size CU (Secondary, tap, load): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
• Conductor Range AL Stranded (Secondary, tap, load): 750 kcmil - 1/0 Str
• Conductor Size AL (Secondary, tap, load): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
• Drive Size Main: 2-Jan
• Drive Type Main: Internal Hex
• Drive Size Tap: 2-Jan
• Drive Type Tap: Internal Hex
• Number of Wire Binding Screws per Port: 2
• Wire Binding Screw Size: 15/16
• Wire Binding Torque: 500
• Length (IN): 5.102
• Length (mm): 129.5908
• Width (IN): 4.25
• Width (mm): 107.95
• Height (IN): 3.125
• Height (mm): 79.375
• Weight (LB): 1.764
• Material: Aluminum
• Clamping Hardware Material: Aluminum
• Clamping Hardware Finish: Tin
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin

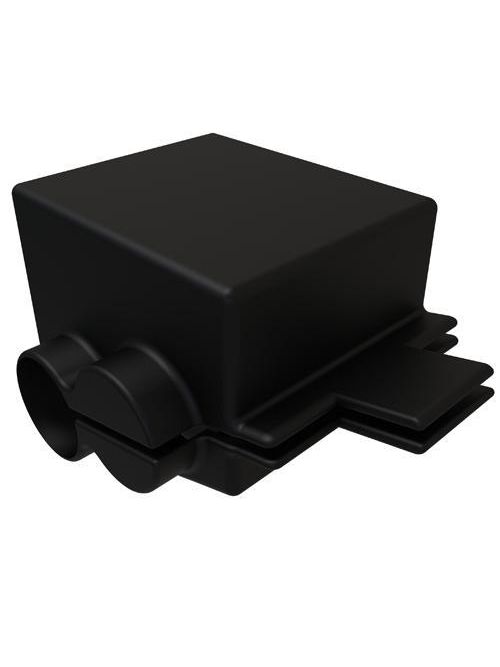

• Insulation: Supplied with insulating cover
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Silver
• Temperature Rating: 90°C
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Number of Conductors: 2
• Number of Poles: 1
• Number of Ports Main: 1
• Number of Ports Tap: 1
• Replacement Parts: GTPC-750-750
• Wire Orientation: Parallel
• Bag Quantity: 1
