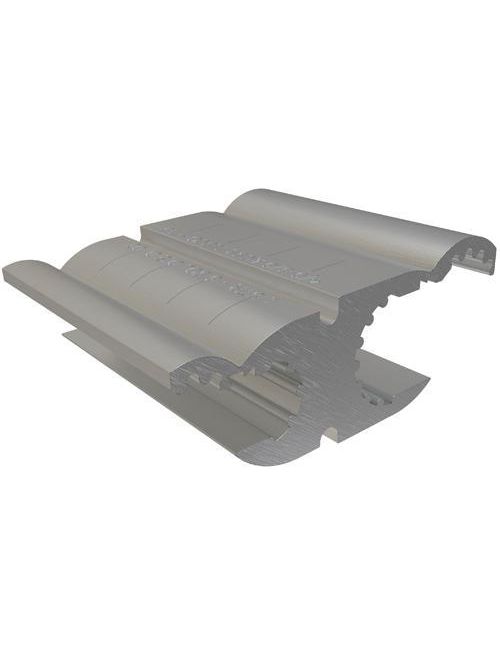

ILSCO HT-3 CSA 4/0 AWG Main Range 1-6 AWG Tap Range Aluminum Compression Tap

Specifications

• UPC Code: 78366946128
• UNSPSC Code: 39121448
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str
• Conductor Size CU (Primary, run, main, line): 4/0 Str
• Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str
• Conductor Size AL (Primary, run, main, line): 4/0 Str
• Conductor Range CU Stranded (Secondary, tap, load): 1 Str - 6 Str
• Conductor Range CU Solid (Secondary, tap, load): 1/0 Sol - 6 Sol
• Conductor Size CU (Secondary, tap, load): 1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Conductor Range AL Stranded (Secondary, tap, load): 1 Str - 6 Str
• Conductor Range AL Solid (Secondary, tap, load): 1/0 Sol - 6 Sol
• Conductor Size AL (Secondary, tap, load): 1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Conductor Range ACSR (Secondary, tap, load): 4/0 ACSR - 3/0 ACSR
• Conductor Range ACSR (primary, run, main, line): 2 ACSR - 6 ACSR
• Length (IN): 0.903
• Length (mm): 22.9362
• Width (IN): 1.875
• Width (mm): 47.625
• Height (IN): 2.254
• Height (mm): 57.2516
• Weight (LB): 0.144
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Color: Silver
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: AP-5465
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Hard
• Conductor Type: Solid,Stranded
• Number of Mounting Holes: 0
• Bag Quantity: 1
