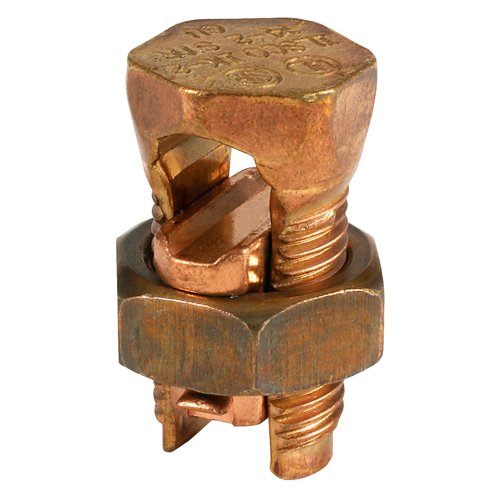

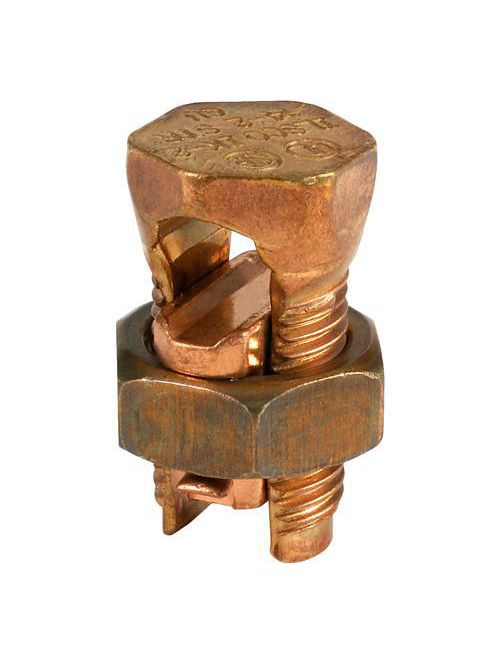

ILSCO IK-2/0 UL/CSA Listed 2 SOL - 2/0 AWG Equal Run and Tap Range 14 AWG Minimum Tap Range Copper Split Bolt
$37.52/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IK-2/0
North Coast Part # 14890

Specifications

  • UPC Code: 78366947014
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range for Equal Run & Tap Str: 2/0 Str - 1 Str
  • Conductor Range for Equal Run & Tap Sol: 2/0 Sol - 2 Sol
  • Conductor Size for Equal Run & Tap: 2/0 Str,1/0 Str,1 Str,2/0 Sol,1/0 Sol,1 Sol,2 Sol
  • Conductor Range for Minimum Tap with Maximum Run: 14 Str
  • Rebar Size(s) Main: #3 (3/8)
  • Max Conductor Copperweld - Str: 3 No. 5
  • Drive Size Main: 13/16,1
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Torque: 385
  • Length (IN): 1.82
  • Width (IN): 1.15
  • Height (IN): 1
  • Weight (LB): 0.191
  • Wire Diameter Range Primary (IN): 0.258 - 0.418
  • Material: Copper
  • Conductor Material: Copper
  • Color: Copper
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-701570
  • CSA Standard: C22.2 No. 65,C22.2 No. 188
  • UL Control Number: 460C
  • UL File Number: E6207
  • UL / CULUS Specification: UL 467 Listed,UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1

Categories

Overview

UPC 78366947014
GTiN 00783669470147
Voltage 2000 Volt
Type IK:CU SPLIT BOLT
Material High Strength Copper Alloy
Applications For Direct Burial in Earth and Concrete
Bolt Size 0.42 in
Temperature Rating 90 C
Pkg Qty 25
Family Brand Name ILSCO
Conductor Type Solid Copper, Compact Copper, Compressed Copper, Concentric Copper
Overall Length 1.812 in
Sub Brand ClearChoice
Finish NA
Color Copper
Number of Conductors 1
TC Connection Mechanical
