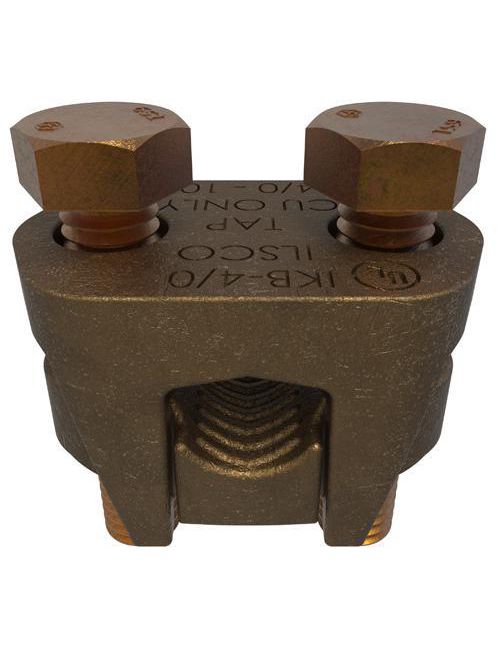

ILSCO IKB-4/0 CU MEC (R)1/0-4/0 (T)
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$78.61/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IKB-4/0
North Coast Part # 269251

Specifications

  • UPC Code: 78366948000
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 1/0 Str
  • Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 4/0 Str - 10 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 2
  • Length (IN): 1.803
  • Length (mm): 45.7962
  • Width (IN): 1.15
  • Width (mm): 29.21
  • Height (IN): 2
  • Height (mm): 50.8
  • Weight (LB): 0.448
  • Material: Copper
  • Conductor Material: Copper
  • Color: Copper
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • ROHS Indicator: 3
  • RUS Listed: TRUE
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1

Overview

UPC 78366948000
Item Long Description ILSCO Two-Bolt Connector, Mechanical connection, Copper material, UL 486A/B Listed, Copper Primary Conductor 4/0 Str - 1/0 Str, Copper Secondary Conductor 10 Sol and 4/0 Str - 10 Str, 2 conductors, 1 ports/wireways, Drive Type Main External Hex, rated for 35 kV, primary color Copper, 1 poles,
GTiN 00783669480009
Type IKB:2 BOLT SPLIT BOLT
Applications Two-Bolt Connector
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Material Copper
Number of Conductors 2
Temperature Rating 90 C
TC Connection Mechanical
Voltage 35,000 Volt
