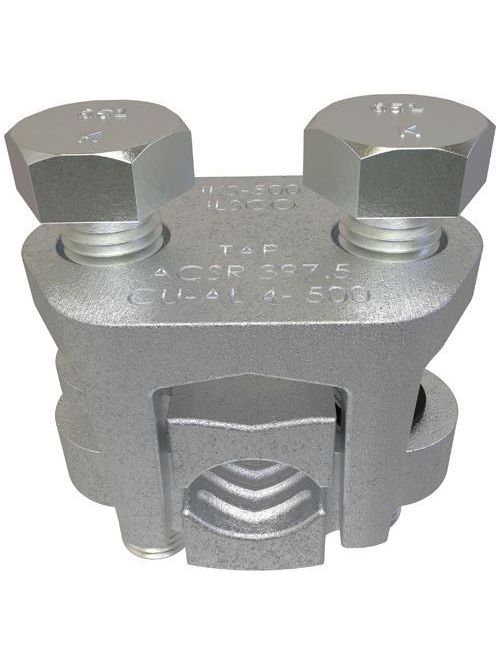

ILSCO IKS-500 2.26 x 3 Inch Electrotinned Copper Alloy Mechanical Cable Bolt Connector
Product image thumbnail 0
Product image thumbnail 1
$259.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IKS-500
North Coast Part # 334266

Specifications

  • UPC Code: 78366949004
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 400 kcmil
  • Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil
  • Conductor Range CU Stranded (Secondary, tap, load): 500 kcmil - 4 Str
  • Conductor Size CU (Secondary, tap, load): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 2
  • Length (IN): 2.35
  • Length (mm): 59.69
  • Width (IN): 1.553
  • Width (mm): 39.4462
  • Height (IN): 2.825
  • Height (mm): 71.755
  • Weight (LB): 0.128288531
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Copper
  • Direct Burial: FALSE
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • ROHS Indicator: 3
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1

Overview

UPC 78366949004
GTiN 00783669490046
Type IKB:2 BOLT SPLIT BOLT
Applications Two-Bolt Connector
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Copper
Material Copper
Number of Conductors 2
Temperature Rating NA C
TC Connection Mechanical
Voltage NA kV
