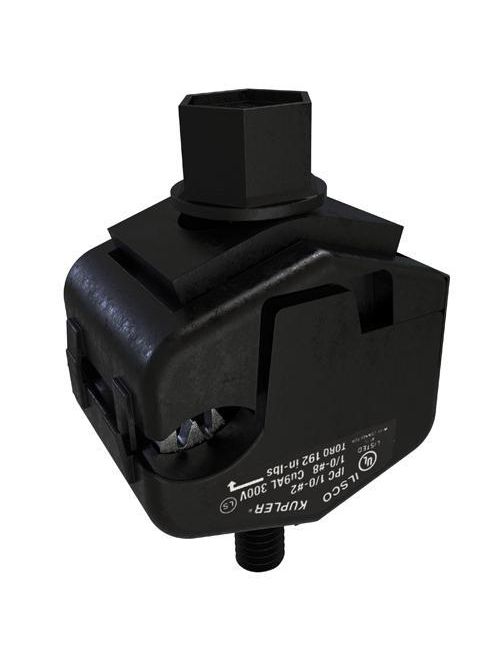

ILSCO IPC-1/0-2 UL CSA Listed 1/0-8 AWG Main Range 2-8 AWG Tap Range Insulation Piercing Connector
Product image thumbnail 0
Product image thumbnail 1
$26.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IPC-1/0-2
North Coast Part # 13529

Specifications

  • UPC Code: 78366953266
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 8 Str
  • Conductor Size CU (Primary, run, main, line): 1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str - 8 Str
  • Conductor Size AL (Primary, run, main, line): 1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 2 Str - 8 Str
  • Conductor Size CU (Secondary, tap, load): 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 2 Str - 8 Str
  • Conductor Size AL (Secondary, tap, load): 2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
  • Drive Size Main: 2-Jan
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-May
  • Wire Binding Torque: 192
  • Length (IN): 2.351
  • Length (mm): 59.7154
  • Width (IN): 1.497
  • Width (mm): 38.0238
  • Height (IN): 1.122
  • Height (mm): 28.4988
  • Weight (LB): 0.122
  • Material: Copper
  • Clamping Hardware Material: Steel
  • Clamping Hardware Finish: Tin
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Nylon
  • Color: Black
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 300 V (480 Grounded Y System)
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Connector Amperage Rating AL (Derated where applicable): 100 Amps
  • Connector Amperage Rating CU (Derated where applicable): 130 Amps
  • Bag Quantity: 1

Overview

UPC 78366953266
GTiN 00783669532661
Voltage 300 Volt
Type IPC:KUP-L-TAP
Applications Insulation Piercing Connector
Pkg Qty 12
Family Brand Name ILSCO
Sub Brand Kup-L-Tap
Finish Tin Plated
Color Black
Material Glass-Filled Nylon Body, Tin Plated Copper Teeth
Number of Conductors 1
Temperature Rating 90 C
Number of Ports 1
TC Connection Mechanical
Conductor Size 1/0-8 AWG Stranded (Main), 2-8 AWG Stranded (Tap)
Conductor Type Aluminum/Copper
