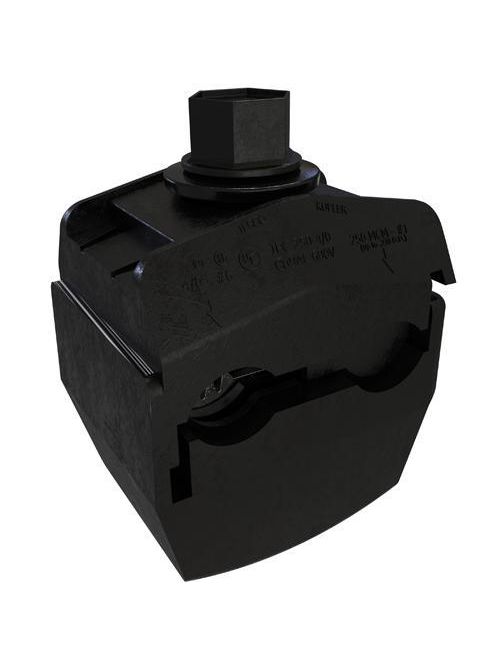

ILSCO IPC-250-4/0-B UL Listed 250 MCM 1 AWG Main Range 4/0 - 6 AWG Tap Range Insulation Piercing Connector
Product image thumbnail 0
Product image thumbnail 1
$69.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IPC-250-4/0-B
North Coast Part # 15534

Specifications

  • UPC Code: 78366953292
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 1 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 1 Str
  • Conductor Size AL (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 4/0 Str - 6 Str
  • Conductor Size CU (Secondary, tap, load): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 4/0 Str - 6 Str
  • Conductor Size AL (Secondary, tap, load): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 8-May
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Jul
  • Wire Binding Torque: 360
  • Length (IN): 14
  • Length (mm): 355.6
  • Width (IN): 6
  • Width (mm): 152.4
  • Height (IN): 1.87
  • Height (mm): 47.498
  • Weight (LB): 0.719
  • Material: Copper
  • Clamping Hardware Material: Steel
  • Clamping Hardware Finish: Tin
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Nylon
  • Color: Black
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Connector Amperage Rating AL (Derated where applicable): 205 Amps
  • Connector Amperage Rating CU (Derated where applicable): 260 Amps
  • Bag Quantity: 1

Overview

UPC 78366953292
GTiN 00783669532920
Voltage 600 Volt
Type IPCB:INSULATION PIERCE BG
Applications Insulation Piercing Connector
Family Brand Name ILSCO
Sub Brand KUP-L-Tap
Finish Tin Plated
Color Black
Material Copper
Number of Conductors 2
Temperature Rating 90 C
Number of Ports 1
TC Connection Mechanical
