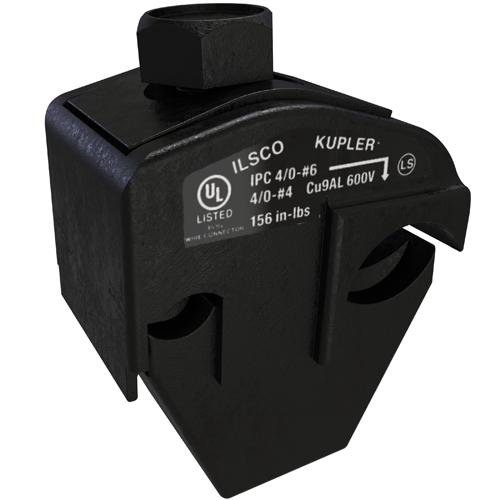

ILSCO IPC-4/0-6 UL/CSA Listed 4/0-4 AWG Main Range 6 - 14 AWG Tap Range Insulation Piercing Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # IPC-4/0-6
North Coast Part # 16334

Specifications

  • UPC Code: 78366953269
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 4 Str
  • Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 4 Str
  • Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 6 Str - 14 Str
  • Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Clamping Bolt Size: 5/16/2018
  • Drive Size Main: 2-Jan
  • Drive Type Main: External Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-May
  • Wire Binding Torque: 156
  • Length (IN): 1.1179
  • Length (mm): 28.39466
  • Width (IN): 1.431
  • Height (IN): 1.928
  • Height (mm): 48.9712
  • Weight (LB): 0.252
  • Max Insulation OD (IN): 0.615
  • Max Insulation OD (mm): 15.621
  • Material: Copper
  • Clamping Hardware Material: Steel
  • Clamping Hardware Finish: Tin
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Nylon
  • Color: Black
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports Main: 1
  • Number of Ports Tap: 1
  • Wire Orientation: Parallel
  • Connector Amperage Rating AL (Derated where applicable): 60 Amps
  • Connector Amperage Rating CU (Derated where applicable): 75 Amps
  • Bag Quantity: 1

Overview

GTiN 00783669532692
Color Black
Voltage 600 Volt
Type Dual-Rated
Material Nylon
Conductor Size 4/0-4 AWG Main, 6-14 AWG Tap
Applications Insulation Piercing Connector
Temperature Rating 90 C
Pkg Qty 12
Family Brand Name ILSCO
Conductor Type Copper and Aluminum
Blade Dimensions 1.453 in W x 1.928 in H
Used With Class B or C Stranded Conductor
Sub Brand Kup-L-Tap
Product UPC 78366953269
Finish Tin Plated
Number of Conductors 2
Number of Ports 1
TC Connection Mechanical
