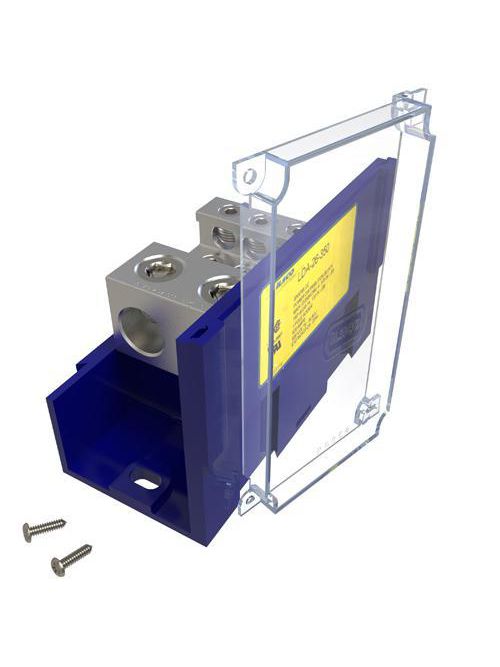

ILSCO LDA-26-350 620 Amp 600 Volt 14 to 2/0 AWG Electrotinned Aluminum Alloy Power Distribution Block

Specifications

• UPC Code: 78366959531
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 6 Str
• Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 6 Str
• Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 14 Str
• Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range AL Stranded (Secondary, tap, load): 2/0 Str - 14 Str
• Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Drive Size Main: 8-Mar
• Drive Type Main: Internal Hex
• Drive Size Tap: 16-Mar
• Drive Type Tap: Internal Hex
• Mounting Bolt/Stud Size: 1/4/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 7/16,3/4
• Wire Binding Torque: 120,375
• Length (IN): 5.5
• Length (mm): 139.7
• Width (IN): 3.055
• Width (mm): 77.597
• Height (IN): 3.937
• Height (mm): 99.9998
• Weight (LB): 1.673
• Mounting Hole Diameter (IN): 0.28
• Mounting Hole Diameter (mm): 7.112
• Mounting Hole Spacing (IN): 4.75
• Mounting Hole Spacing (mm): 120.65
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Enclosure Material: Thermoplastic
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Blue
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E84782
• UL / CULUS Specification: UL 1059 Recognized
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• RUS Listed: FALSE
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Contains DE-OX: FALSE
• Mounting Hole Type: Thru
• Number of Conductors: 8
• Number of Poles: 1
• Number of Ports / Wireways: 8
• Number of Ports Per Pole Primary: 2
• Number of Ports Per Pole Secondary: 6
• Connector Amperage Rating CU (Derated where applicable): 620 Amps
• Bag Quantity: 1
