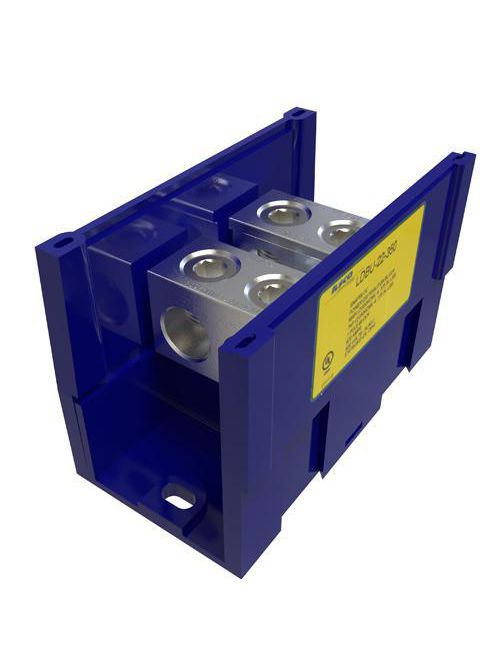

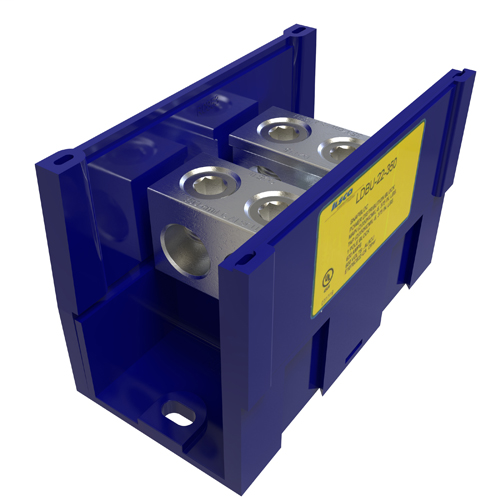

ILSCO LDBU-22-350 AL MECH (P)2x350-
$151.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # LDBU-22-350
North Coast Part # 876698

Specifications

  • UPC Code: 78366959486
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 350 kcmil - 6 Str
  • Conductor Size CU (Secondary, tap, load): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 350 kcmil - 6 Str
  • Conductor Size AL (Secondary, tap, load): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Drive Size Tap: 8-Mar
  • Drive Type Tap: Internal Hex
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Mar
  • Wire Binding Torque: 375
  • Length (IN): 5.5
  • Length (mm): 139.7
  • Width (IN): 2.933
  • Width (mm): 74.4982
  • Height (IN): 3.574
  • Height (mm): 90.7796
  • Weight (LB): 1.927
  • Mounting Hole Diameter (IN): 0.28
  • Mounting Hole Diameter (mm): 7.112
  • Mounting Hole Spacing (IN): 4.75
  • Mounting Hole Spacing (mm): 120.65
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Enclosure Material: Thermoplastic
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Blue
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • UL Control Number: 45U4
  • UL File Number: E112158
  • UL / CULUS Specification: UL 1953 Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • RUS Listed: FALSE
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 4
  • Number of Poles: 1
  • Number of Ports / Wireways: 3
  • Number of Ports Per Pole Primary: 2
  • Number of Ports Per Pole Secondary: 2
  • Connector Amperage Rating CU (Derated where applicable): 620 Amps
  • Bag Quantity: 1

Overview

UPC 78366959486
GTiN 00783669594867
Color Blue
Type LDB:SNAP BLOCKS UL
Material Aluminum
Applications Power Distribution Block, Modular Design
Family Brand Name ILSCO
Sub Brand Snapbloc
Finish Tin Plated
Number of Conductors 4
Temperature Rating 90 C
TC Connection Mechanical
Enclosure Thermoplastic
