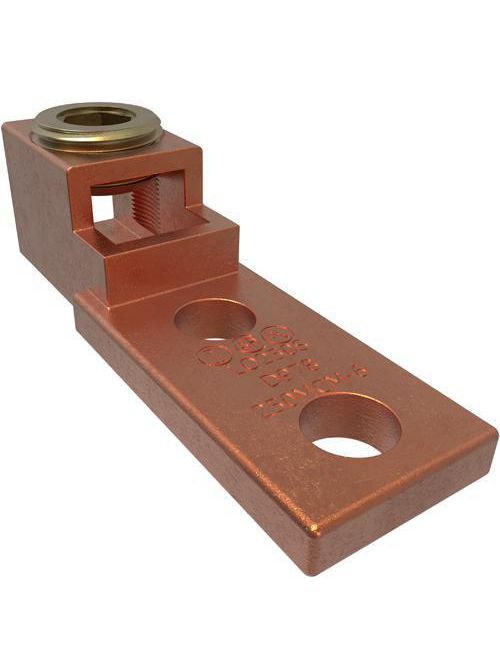

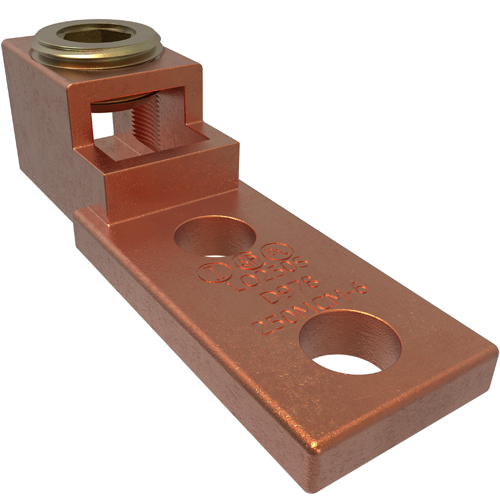

ILSCO LO-250-S CU MEC 250-6 13/32-1
$48.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # LO-250-S
North Coast Part # 487337

Specifications

  • UPC Code: 78366957035
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 3/8/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 13/16
  • Wire Binding Screw Size (mm): 33426.4
  • Wire Binding Torque: 375
  • Length (IN): 3.13
  • Length (mm): 79.502
  • Width (IN): 1
  • Width (mm): 25.4
  • Height (IN): 0.875
  • Height (mm): 22.225
  • Weight (LB): 0.295
  • Dimension G (IN): 0.375
  • Mounting Bolt/Stud Size (mm): 965.2
  • Mounting Hole Diameter (IN): 0.406
  • Mounting Hole Diameter (mm): 10.3124
  • Mounting Hole Spacing (IN): 1
  • Mounting Hole Spacing (mm): 25.4
  • Tang Length (IN): 1.75
  • Tang Length (mm): 44.45
  • Tang Thickness (IN): 0.25
  • Tang Thickness (mm): 6.35
  • Tang Offset (IN): 0
  • Tang Width (IN): 1
  • Tang Width (mm): 25.4
  • Material: Copper
  • Conductor Material: Copper
  • Wire Binding Hardware Material: Brass
  • Wire Binding Hardware Finish: Bright Dip
  • Color: Copper
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 1
  • Number of Ports Main: 1
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366957035
GTiN 00783669570359
Type LO:1&2 HOLES STRAIGHT
Applications Mechanical Lug, One Conductor
Family Brand Name ILSCO
Sub Brand ILSCO
Finish NA
Color Copper
Material Copper
Number of Conductors 1
Temperature Rating 90 C
TC Connection Mechanical
