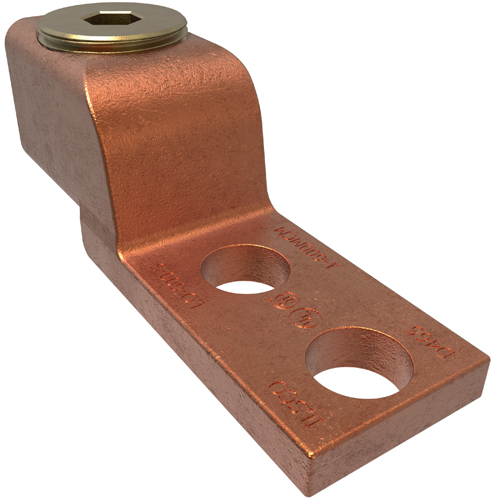

ILSCO LO-600-S 1/2 Inch Stud Copper 1-Conductor 2-Hole Mechanical Lug

Specifications

• UPC Code: 78366957484
• UNSPSC Code: 39121408
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 1 Str
• Conductor Size CU (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str
• Drive Size Main: 8-Mar
• Drive Type Main: Internal Hex
• Mounting Bolt/Stud Size: 1/2/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 1/1/2016
• Wire Binding Torque: 375
• Length (IN): 3.875
• Length (mm): 98.425
• Width (IN): 1.25
• Width (mm): 31.75
• Height (IN): 1.401
• Height (mm): 35.5854
• Weight (LB): 0.669
• Dimension G (IN): 0.375
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.563
• Mounting Hole Diameter (mm): 14.3002
• Mounting Hole Spacing (IN): 1.063
• Mounting Hole Spacing (mm): 27.0002
• Tang Length (IN): 2.015
• Tang Length (mm): 51.181
• Tang Thickness (IN): 0.3
• Tang Thickness (mm): 7.62
• Tang Width (IN): 1.25
• Tang Width (mm): 31.75
• Material: Copper
• Conductor Material: Copper
• Wire Binding Hardware Material: Brass
• Wire Binding Hardware Finish: Tin
• Color: Copper
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Stranded
• Mounting Hole Type: Thru
• Number of Conductors: 1
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports / Wireways: 1
• Number of Ports Main: 1
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
