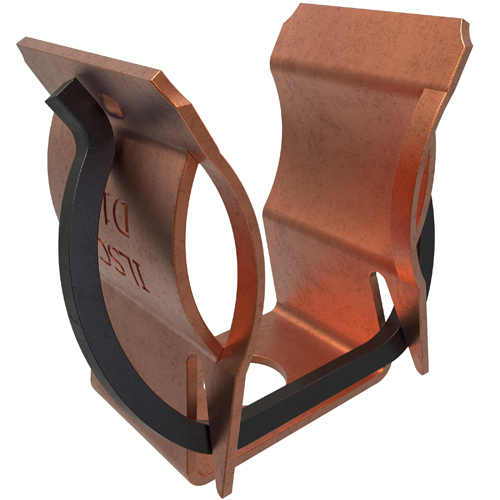

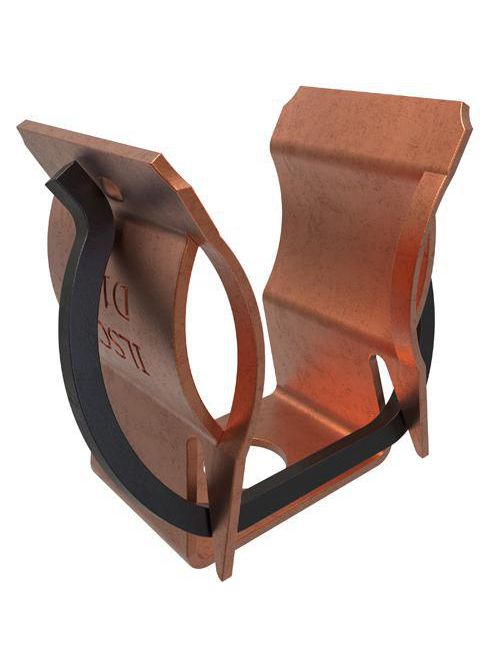

ILSCO M-162 CU FUSE CLIP 30A-600V B
$5.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # M-162
North Coast Part # 931929

Specifications

  • UPC Code: 78366960667
  • UNSPSC Code: 39121630
  • Mounting Bolt/Stud Size: 1/4/2020
  • Length (IN): 1.12
  • Length (mm): 28.448
  • Width (IN): 0.635
  • Width (mm): 16.129
  • Height (IN): 1.046
  • Height (mm): 26.5684
  • Weight (LB): 0.022
  • Dimension G (IN): 0.25
  • Dimension G (mm): 6.35
  • Mounting Hole Diameter (IN): 0.25
  • Mounting Hole Diameter (mm): 6.35
  • Thickness (IN): 0.03
  • Thickness (mm): 0.762
  • Material: Copper
  • Connector Finish: Tin
  • Color: Copper
  • Voltage Rating: 600 V
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Clip
  • Fuse Type: Ferrule
  • Mounting Hole Type: Thru
  • Connector Amperage Rating CU (Derated where applicable): 30 Amps
  • Bag Quantity: 1

Categories

Overview

UPC 78366960667
GTiN 00783669606676
Length 3/4 in
Width 1/2 in
Voltage 600 Volt
Type M Wire Reinforced
Material Copper Alloy
Applications Fuse Clip
Height 1-1/32 in
Pkg Qty 48
Family Brand Name ILSCO
Used With Class M Fuses
Sub Brand ClearChoice
Fuse Type Ferrule
TC Connection Clip
