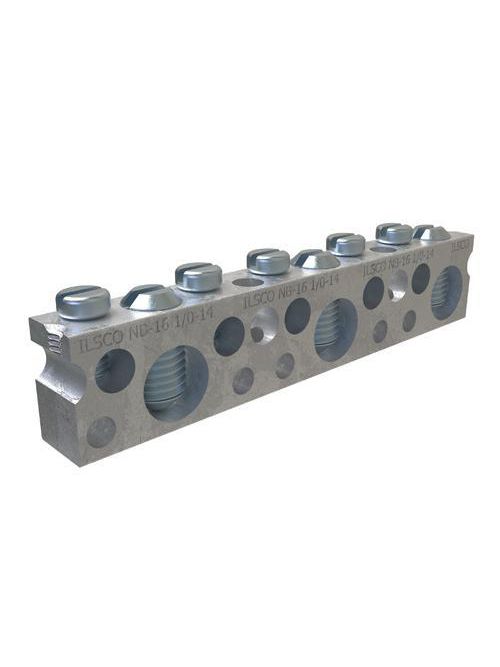

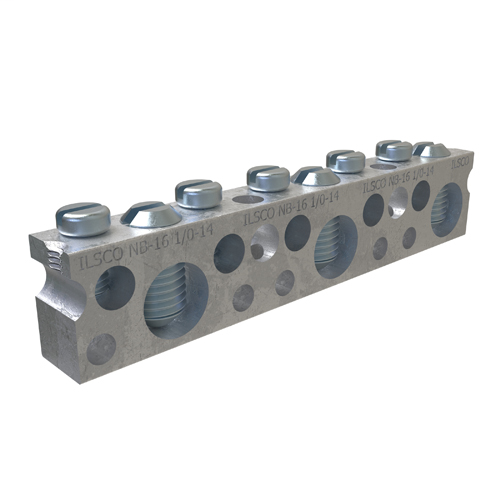

ILSCO NBCE-0305-2 CU MEC (3)1/0-14

Specifications

• UPC Code: 78366900587
• UNSPSC Code: 39121408
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
• Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Drive Type Main: Slotted
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 16-May
• Length (IN): 3.176
• Length (mm): 80.6704
• Width (IN): 0.375
• Width (mm): 9.525
• Height (IN): 0.734
• Height (mm): 18.6436
• Weight (LB): 0.174
• Mounting Bolt/Stud Size (mm): 254
• Mounting Hole Position (IN): 4 & 8
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Wire Binding Hardware Material: Steel
• Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
• Color: Silver
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Recognized,UL 467 Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Mounting Hole Type: Thru
• Number of Conductors: 1
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports Main: 3
• Number of Ports Tap: 5
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
