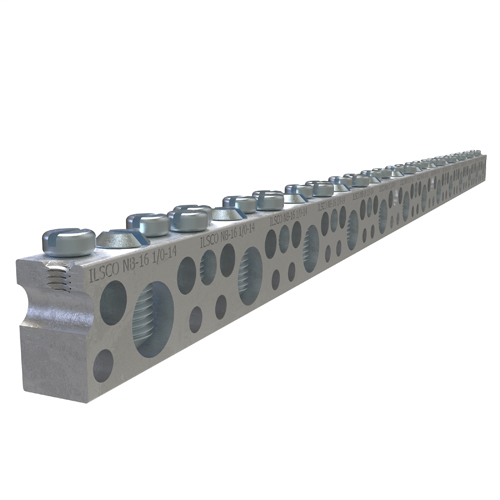

ILSCO NBCE-1336-2 CU MEC (13)1/0-14
$257.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # NBCE-1336-2
North Coast Part # 1279751

Specifications

  • UPC Code: 78366900589
  • UNSPSC Code: 39121408
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-May
  • Length (IN): 15.158
  • Length (mm): 385.0132
  • Width (IN): 0.375
  • Width (mm): 9.525
  • Height (IN): 0.734
  • Height (mm): 18.6436
  • Weight (LB): 0.869
  • Dimension G (IN): 5.82
  • Dimension G (mm): 147.828
  • Mounting Bolt/Stud Size (mm): 254
  • Mounting Hole Diameter (IN): 0.203
  • Mounting Hole Diameter (mm): 5.1562
  • Mounting Hole Position (IN): 20 & 28
  • Mounting Hole Spacing (IN): 2.344
  • Mounting Hole Spacing (mm): 59.5376
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Steel
  • Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
  • Color: Silver
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Recognized,UL 467 Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Hole Type: Thru
  • Number of Conductors: 1
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports Main: 13
  • Number of Ports Tap: 36
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366900589
GTiN 00783669005899
Type NBCE:CU NEUTRAL BAR1/0-14
Applications Neutral Bar
Family Brand Name ILSCO
Sub Brand ILSCO
Finish Tin Plated
Color Silver
Material Copper
Number of Conductors 1
Number of Ports 36
TC Connection Mechanical
