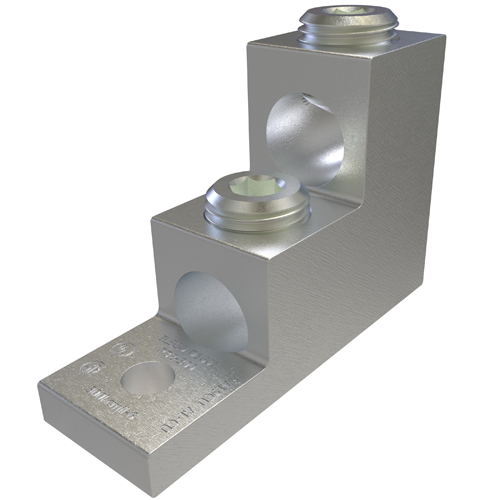

ILSCO PB2-300 UL Rated 300 MCM 6 AWG 21/64 Inch Mounting Hole Aluminum Mechanical Lug
$23.02/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PB2-300
North Coast Part # 215193

Specifications

  • UPC Code: 78366918420
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 300 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 300 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 5/16/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Nov
  • Wire Binding Screw Size (mm): 28346.4
  • Wire Binding Torque: 275
  • Length (IN): 3
  • Length (mm): 76.2
  • Width (IN): 0.993
  • Width (mm): 25.2222
  • Height (IN): 2
  • Height (mm): 50.8
  • Weight (LB): 0.23
  • Dimension G (IN): 0.453
  • Mounting Hole Diameter (IN): 0.328
  • Mounting Hole Diameter (mm): 8.3312
  • Mounting Hole Spacing (mm): 0
  • Tang Length (IN): 1
  • Tang Length (mm): 25.4
  • Tang Thickness (IN): 0.312
  • Tang Thickness (mm): 7.9248
  • Tang Width (mm): 25.2222
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 2
  • Number of Mounting Holes: 1
  • Number of Poles: 1
  • Number of Ports / Wireways: 2
  • Number of Ports Main: 2
  • Wire Orientation: Perpendicular
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Categories

Overview

UPC 78366918420
GTiN 00783669184204
Length 3.000 in
Finish Electro-Tin Plated
Width 1.000 in
Voltage 2000 Volt
Type 2 Port, Dual Rated
Material 6061-T6 Aluminum Alloy
Number of Conductors 2
Conductor Size 300 MCM - 6 AWG
Applications Panelboard Lug
Height 2.000 in
Tongue Type Straight
Bolt Size 5/16 in
Temperature Rating 90 C
Family Brand Name ILSCO
Conductor Type Aluminum and Copper
Number of Ports 2
Blade Dimensions 3 in L x 1 in W
Sub Brand ClearChoice
Color Silver
TC Connection Mechanical
