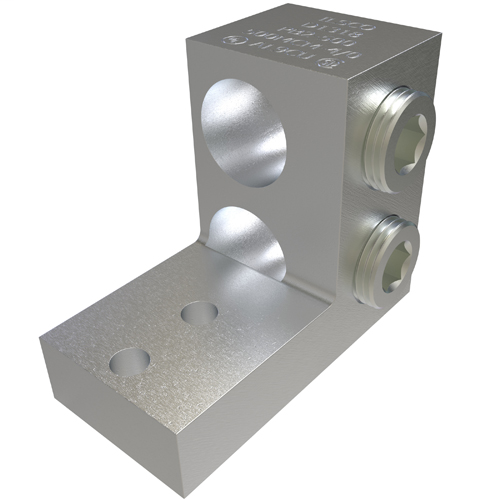

ILSCO PB2-500 UL Rated 500 MCM 4/0 AWG 9/32 Inch Mounting Hole 11/16 Inch Hole Spacing Aluminum Mechanical Lug

Specifications

• UPC Code: 78366918426
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil - 4/0 Str
• Conductor Size CU (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil - 4/0 Str
• Conductor Size AL (Primary, run, main, line): 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str
• Drive Size Main: 8-Mar
• Drive Type Main: Internal Hex
• Mounting Bolt/Stud Size: 1/4/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 4-Mar
• Wire Binding Torque: 375
• Length (IN): 2.906
• Length (mm): 73.8124
• Width (IN): 1.438
• Width (mm): 36.5252
• Height (IN): 2.375
• Height (mm): 60.325
• Weight (LB): 0.402
• Dimension G (IN): 0.25
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (IN): 0.688
• Mounting Hole Spacing (mm): 17.4752
• Tang Length (IN): 1.688
• Tang Length (mm): 42.8752
• Tang Thickness (IN): 0.625
• Tang Thickness (mm): 15.875
• Tang Width (IN): 1.438
• Tang Width (mm): 36.5252
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Silver
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Stranded
• Contains DE-OX: FALSE
• Mounting Hole Type: Thru
• Number of Conductors: 2
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports / Wireways: 2
• Number of Ports Main: 2
• Wire Orientation: Perpendicular
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
