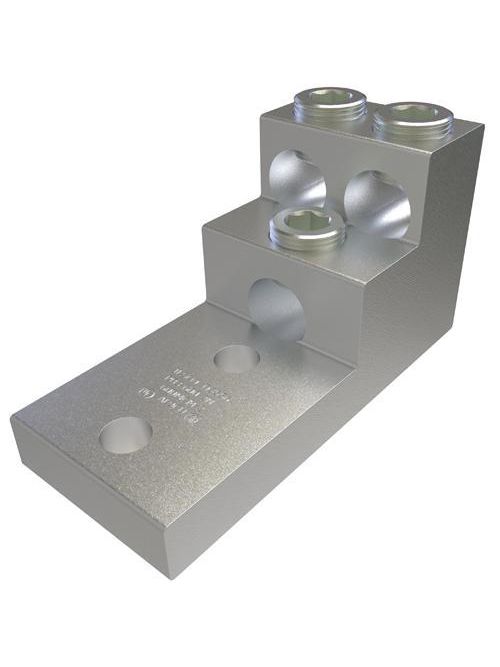

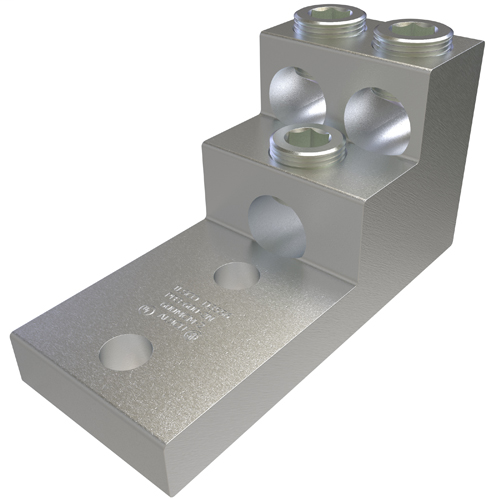

ILSCO PB3-600-2N 1/2 Inch Stud Electrotinned Aluminum Alloy Chamfered Wire Entry Panelboard Lug
$75.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PB3-600-2N
North Coast Part # 64391

Specifications

  • UPC Code: 78366918072
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 2 Str
  • Conductor Size CU (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 2 Str
  • Conductor Size AL (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Drive Size Main: 2-Jan
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 1/2/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 15/16
  • Wire Binding Torque: 500
  • Length (IN): 5.687
  • Width (IN): 2.469
  • Height (IN): 3
  • Weight (LB): 1.799
  • Dimension G (IN): 0.625
  • Dimension G (mm): 15.875
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.563
  • Mounting Hole Diameter (mm): 14.3002
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Tang Length (IN): 3.125
  • Tang Length (mm): 79.375
  • Tang Thickness (IN): 0.75
  • Tang Thickness (mm): 19.05
  • Tang Width (IN): 2.469
  • Tang Width (mm): 62.7126
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 3
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 3
  • Number of Ports Main: 3
  • Wire Orientation: Perpendicular
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366918072
GTiN 00783669180725
Length 5.687 in
Finish Electro-Tin Plated
Width 2.468 in
Voltage 2000 Volt
Type PB:PANELBOARD STACK LUG
Material High Strength 6061-T6 Aluminum Alloy
Number of Conductors 3
Conductor Size 600 MCM - 2 AWG
Applications For Terminating Connector
Height 3.000 in
Bolt Size 1/2 in
Temperature Rating 90 C
Family Brand Name ILSCO
Conductor Type Aluminum and Copper
Number of Ports 3
Blade Dimensions 5-11/16 in L x 2.4688 in W x 3 in H
Mounting Hole Size 13/32 in
Sub Brand ClearChoice
Color Silver
TC Connection Mechanical
