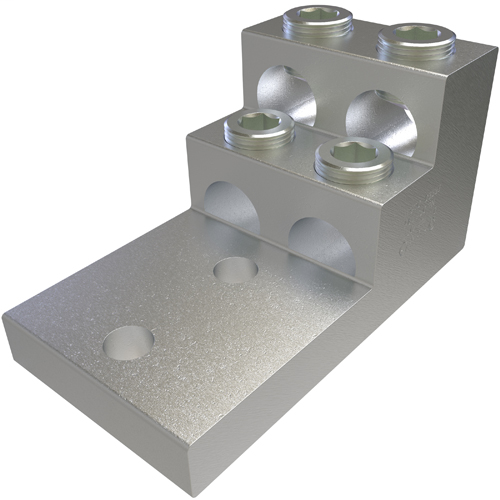

ILSCO PB4-750-2N 1/2 Inch Stud Electrotinned Aluminum Alloy Chamfered Wire Entry Panelboard Lug

Specifications

• UPC Code: 78366919536
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str
• Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str
• Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
• Drive Size Main: 2-Jan
• Drive Type Main: Internal Hex
• Mounting Bolt/Stud Size: 1/2/2020
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 15/16
• Wire Binding Torque: 500
• Length (IN): 5.687
• Width (IN): 3.063
• Height (IN): 3
• Weight (LB): 2.586
• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.563
• Mounting Hole Diameter (mm): 14.3002
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Tang Length (IN): 3.125
• Tang Length (mm): 79.375
• Tang Thickness (IN): 0.75
• Tang Thickness (mm): 19.05
• Tang Width (IN): 3.063
• Tang Width (mm): 77.8002
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Silver
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Connection: Mechanical
• Conductor Type: Stranded
• Contains DE-OX: FALSE
• Mounting Hole Type: Thru
• Number of Conductors: 4
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports / Wireways: 4
• Number of Ports Main: 4
• Wire Orientation: Perpendicular
• Bag Quantity: 1
• CrossSell: DE-OX-8OZ
