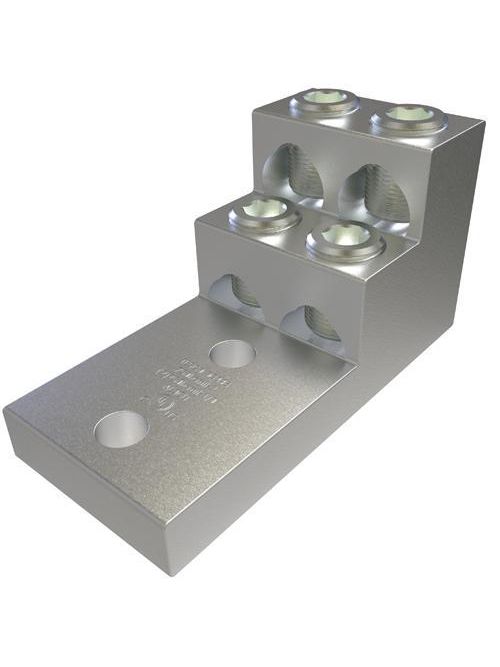

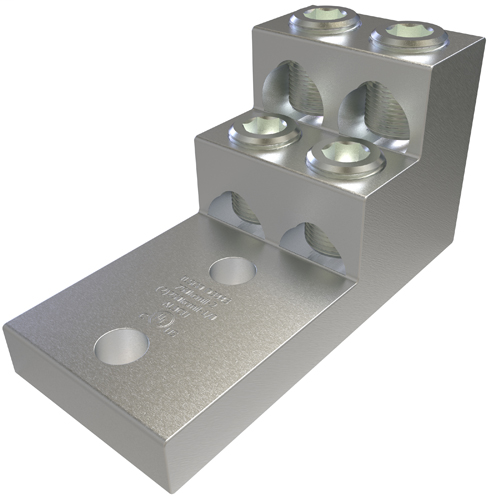

ILSCO PBMW-4-750-12 4-PORT MULTI-WI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$214.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PBMW-4-750-12
North Coast Part # 1273623

Specifications

  • UPC Code: 78366918437
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 2 Str
  • Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 2 Str
  • Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
  • Wire Combinations: (2) 250 kcmil - 1/0 Str
  • Drive Size Main: 2-Jan
  • Drive Type Main: Internal Hex
  • Mounting Bolt/Stud Size: 1/2/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 15/16
  • Wire Binding Torque: 500
  • Length (IN): 5.687
  • Length (mm): 144.4498
  • Width (IN): 2.62
  • Width (mm): 66.548
  • Height (IN): 3
  • Height (mm): 76.2
  • Weight (LB): 1.569
  • Dimension G (IN): 0.625
  • Dimension G (mm): 15.875
  • Mounting Bolt/Stud Size (mm): 304.8
  • Mounting Hole Diameter (IN): 0.562
  • Mounting Hole Diameter (mm): 14.2748
  • Mounting Hole Spacing (IN): 1.75
  • Mounting Hole Spacing (mm): 44.45
  • Tang Length (IN): 3.125
  • Tang Length (mm): 79.375
  • Tang Thickness (IN): 0.75
  • Tang Thickness (mm): 19.05
  • Tang Width (IN): 2.62
  • Tang Width (mm): 66.548
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Silver
  • Direct Burial: FALSE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • UL File Number: E6207
  • UL / CULUS Specification: UL/cUL 486A/B Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 48
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 4
  • Number of Ports Main: 4
  • Wire Orientation: Perpendicular
  • Bag Quantity: 1
  • CrossSell: DE-OX-8OZ

Overview

UPC 78366918437
Item Long Description ILSCO Panelboard Lug, Multi Wire, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL/cUL 486A/B Listed, Copper/Aluminum Primary Conductor 750 kcmil - 2 Str, 4, 8 conductors, 4 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,
GTiN 00783669184372
Family Brand Name ILSCO
Finish Tin Plated
Color Silver
Type PBMW:PANEL BOARD MULTI WIRE
Material Aluminum
Applications Panelboard Lug, Multi Wire
Temperature Rating 90 C
TC Connection Mechanical
Sub Brand ILSCO
