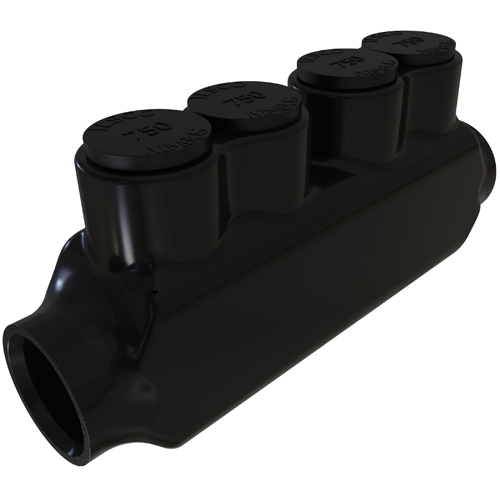

ILSCO PBT-750ul/CSA Listed 750 - 250 MCM Aluminum Insulated Mechanical Splice/Offset

Specifications

• UPC Code: 78366907708
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 250 kcmil
• Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 250 kcmil
• Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
• Drive Size Main: 2-Jan
• Drive Type Main: Internal Hex
• Number of Wire Binding Screws per Port: 2
• Wire Binding Screw Size: 15/16
• Wire Binding Torque: 500
• Length (IN): 7.25
• Width (IN): 1.749
• Width (mm): 44.4246
• Height (IN): 3.306
• Height (mm): 83.9724
• Weight (LB): 1.368
• Max Insulation OD (IN): 1.212
• Max Insulation OD (mm): 30.7848
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Insulation: Plastisol
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Black
• Cap Color Main: Black
• Cap Color Tap: Black
• Environmental Conditions: Cold temperature rated to -45⁰C
• Flammability Rating: Insulation rated per UL 94
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Connection: Mechanical
• Conductor Type: Stranded
• Contains DE-OX: TRUE
• Number of Conductors: 2
• Number of Poles: 1
• Number of Ports / Wireways: 2
• Number of Ports Main: 2
• Number of Usable Ports: 2
• Replacement Parts: PORTPLUG-750, SCREWCAP-750
• Bag Quantity: 1
