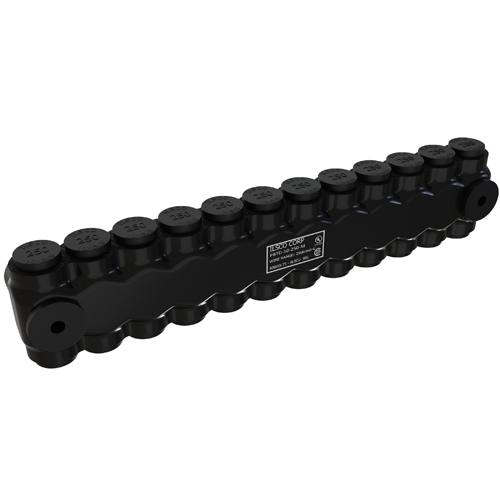

ILSCO PBTD-10-250-M INSUL AL MECH (
$367.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PBTD-10-250-M
North Coast Part # 931239

Specifications

  • UPC Code: 78366900094
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Sep
  • Wire Binding Torque: 275
  • Length (IN): 11.394
  • Length (mm): 289.4076
  • Width (IN): 2.318
  • Width (mm): 58.8772
  • Height (IN): 2.197
  • Height (mm): 55.8038
  • Weight (LB): 1.529
  • Max Insulation OD (IN): 0.75
  • Max Insulation OD (mm): 19.05
  • Mounting Hole Diameter (IN): 0.266
  • Mounting Hole Spacing (IN): 10.23
  • Mounting Hole Spacing (mm): 259.842
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Cap Color Main: Black
  • Cap Color Tap: Black
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Mounting Hole Type: Thru
  • Number of Conductors: 10
  • Number of Mounting Holes: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 10
  • Number of Ports Main: 10
  • Number of Usable Ports: 10
  • Replacement Parts: PORTPLUG-250, SCREWCAP-250
  • Bag Quantity: 1

Overview

UPC 78366900094
GTiN 00783669000948
Color Black
Type PBTM:MOUNTABLE INS BLK
Material Aluminum
Applications Mountable Insulated Multi-Tap Connector Dual Side Entry
Temperature Rating 90 C
Family Brand Name ILSCO
Number of Ports 10
Sub Brand Nimbus
Finish Tin Plated
Number of Conductors 10
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
