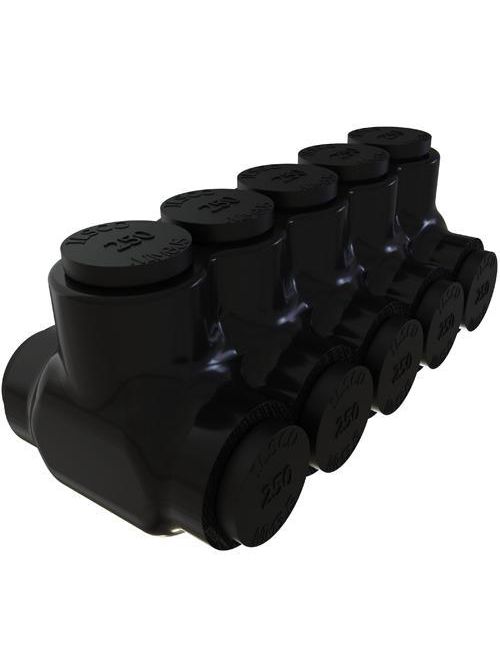

ILSCO PBTD-5-250 UL/CSA Listed 250 MCM 6 AWG 5-Port Dual Rated Aluminum Insulated Mechanical Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PBTD-5-250
North Coast Part # 679194


  • UPC Code: 78366907794
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Sep
  • Wire Binding Torque: 275
  • Length (IN): 4.884
  • Length (mm): 124.0536
  • Width (IN): 2.318
  • Width (mm): 58.8772
  • Height (IN): 2.041
  • Height (mm): 51.8414
  • Weight (LB): 0.757
  • Max Insulation OD (IN): 0.75
  • Max Insulation OD (mm): 19.05
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Cap Color Main: Black
  • Cap Color Tap: Black
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm -
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 5
  • Number of Poles: 1
  • Number of Ports / Wireways: 5
  • Number of Ports Main: 5
  • Number of Usable Ports: 5
  • Number of Usable Taps: 5
  • Replacement Parts: PORTPLUG-250, SCREWCAP-250
  • Bag Quantity: 1


UPC 78366907794
Item Long Description Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX, 5 conductors, 5 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
GTiN 00783669077940
Color Black
Material Aluminum
Applications Insulated Multi-Tap Connector, Dual Sided Entry
Temperature Rating 90 C
Family Brand Name ILSCO
Number of Ports 5
Sub Brand Nimbus
Finish Tin Plated
Number of Conductors 5
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
Voltage 600 Volt
