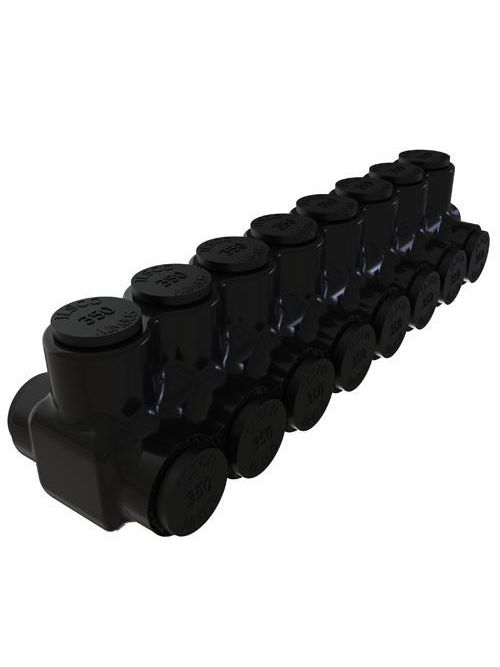

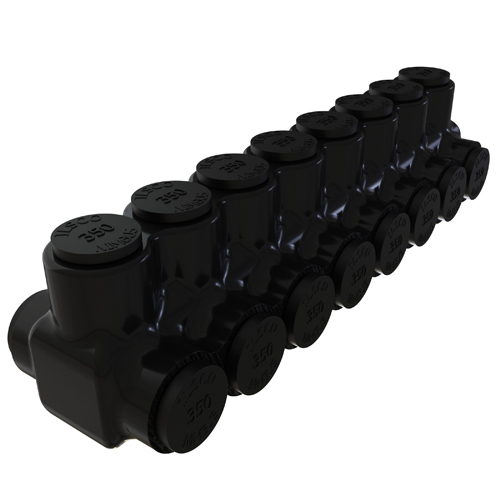

ILSCO PBTD-8-350 UL/CSA Listed 350 MCM 6 AWG 8-Port Dual Rated Aluminum Insulated Mechanical Connector
$109.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PBTD-8-350
North Coast Part # 552057

Specifications

  • UPC Code: 78366907826
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 16-Nov
  • Wire Binding Screw Size (mm): 28346.4
  • Wire Binding Torque: 275
  • Length (IN): 9.466
  • Length (mm): 240.4364
  • Width (IN): 2.578
  • Height (IN): 2.432
  • Height (mm): 61.7728
  • Weight (LB): 1.649
  • Max Insulation OD (IN): 0.86
  • Max Insulation OD (mm): 21.844
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Cap Color Main: Black
  • Cap Color Tap: Black
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 8
  • Number of Poles: 1
  • Number of Ports / Wireways: 8
  • Number of Ports Main: 8
  • Number of Usable Ports: 8
  • Number of Usable Taps: 8
  • Replacement Parts: PORTPLUG-350, SCREWCAP-350
  • Bag Quantity: 1
  • Upsell: PBTD-8-350-F

Overview

UPC 78366907826
GTiN 00783669078268
Color Black
Type PBTD:INS BLK TWO SIDE TAP
Material Aluminum
Applications Insulated Multi-Tap Connector, Dual Sided Entry
Temperature Rating 90 C
Family Brand Name ILSCO
Number of Ports 8
Sub Brand Nimbus
Finish Tin Plated
Number of Conductors 8
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
