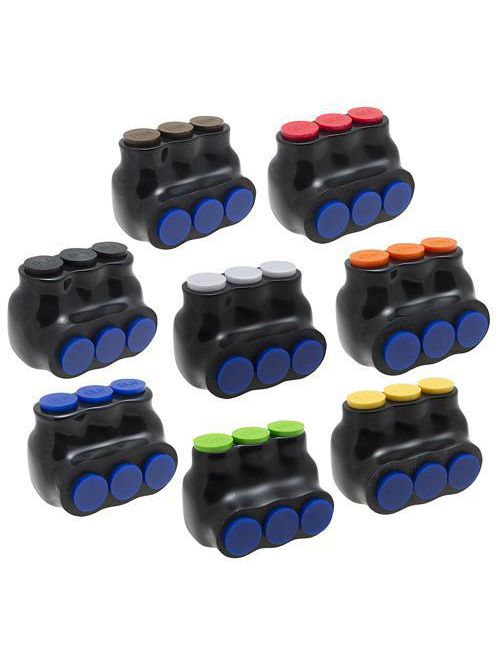

ILSCO PBTI-3-1/0-F-BLK INS (3) 1-14
Product image thumbnail 0
Product image thumbnail 1
$120.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PBTI-3-1/0-F-BLK
North Coast Part # 1349987

Specifications

  • UPC Code: 78366974140
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str - 14 Str
  • Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Flex Conductor Range: 1-14 H,I,K,DLO 2-14 M
  • Flex Conductor Size (Class H): 1 H,2 H,3 H,4 H,5 H,6 H,7 H,8 H,10 H,12 H,14 H
  • Flex Conductor Size (Class I): 1 I,2 I,3 I,4 I,5 I,6 I,7 I,8 I,10 I,12 I,14 I
  • Flex Conductor Size (Class K): 1 K,2 K,3 K,4 K,5 K,6 K,7 K,8 K,10 K,12 K,14 K
  • Flex Conductor Size (Class M): 2 M,3 M,4 M,5 M,6 M,7 M,8 M,10 M,12 M,14 M
  • Flex Conductor Size (Class DLO): 1 DLO,2 DLO,3 DLO,4 DLO,6 DLO,8 DLO,10 DLO,12 DLO,14 DLO
  • Drive Size Main: 16-Mar
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 8-Mar
  • Wire Binding Screw Size (mm): 965.2
  • Wire Binding Torque: 120
  • Length (IN): 2.248
  • Length (mm): 57.0992
  • Width (IN): 1.599
  • Width (mm): 40.6146
  • Height (IN): 1.627
  • Height (mm): 41.3258
  • Weight (LB): 0.18462239
  • Max Insulation OD (IN): 0.511
  • Max Insulation OD (mm): 12.9794
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Cap Color Main: Black
  • Cap Color Tap: Blue
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded,Flex
  • Contains DE-OX: TRUE
  • Number of Conductors: 3
  • Number of Poles: 1
  • Number of Ports / Wireways: 3
  • Number of Ports Main: 3
  • Number of Usable Ports: 3
  • Replacement Parts: SCREWCAP-24
  • Bag Quantity: 1

Overview

GTiN 00783669741407
Type PBTI:FLEX INS BLK MOTOR
Applications Insulated Multi-Tap Connector
Family Brand Name ILSCO
Sub Brand Nimbus4Flex Motors
Product UPC 78366974140
Finish Tin Plated
Color Black
Material Aluminum
Number of Conductors 3
Temperature Rating 90 C
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
