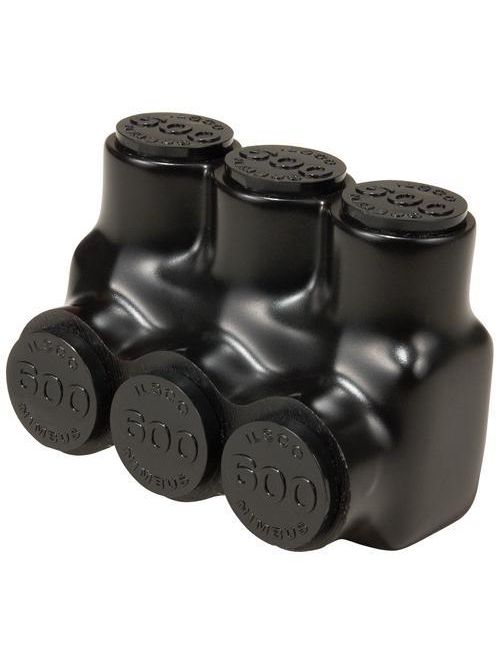

ILSCO PBTS-8-3/0 INSUL AL MECH (8)

Specifications

• UPC Code: 78366907962
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 3/0 Str - 6 Str
• Conductor Size CU (Primary, run, main, line): 3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Conductor Range AL Stranded (Primary, run, main, line): 3/0 Str - 6 Str
• Conductor Size AL (Primary, run, main, line): 3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Drive Size Main: 4-Jan
• Drive Type Main: Internal Hex
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 2-Jan
• Wire Binding Screw Size (mm): 304.8
• Wire Binding Torque: 200
• Length (IN): 6.458
• Length (mm): 164.0332
• Width (IN): 1.726
• Width (mm): 43.8404
• Height (IN): 1.863
• Height (mm): 47.3202
• Weight (LB): 0.74
• Max Insulation OD (IN): 0.62
• Max Insulation OD (mm): 15.748
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Insulation: Plastisol
• Wire Binding Hardware Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Color: Black
• Cap Color Main: Black
• Cap Color Tap: Black
• Environmental Conditions: Cold temperature rated to -45⁰C
• Flammability Rating: Insulation rated per UL 94
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Connection: Mechanical
• Conductor Type: Stranded
• Contains DE-OX: TRUE
• Number of Conductors: 8
• Number of Poles: 1
• Number of Ports / Wireways: 8
• Number of Ports Main: 8
• Number of Usable Ports: 8
• Number of Usable Taps: 8
• Replacement Parts: PLUG-3/0
• Bag Quantity: 1
