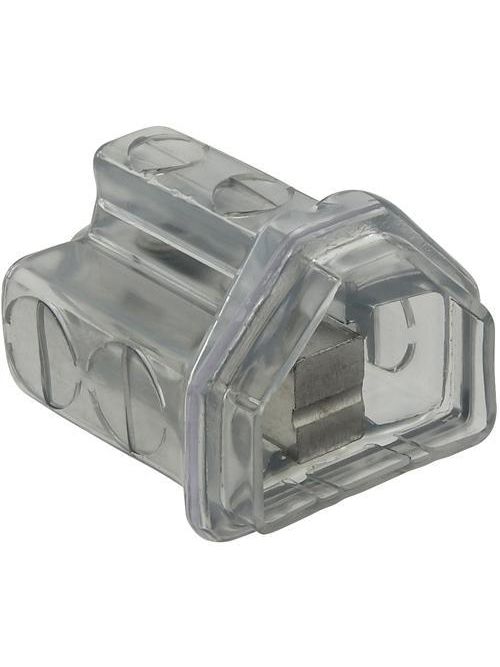

ILSCO PCT-2-800 UL/CSA Listed 800 - 250 MCM 2-Port Aluminum Insulated Mechanical Tap
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$179.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PCT-2-800
North Coast Part # 341933

Specifications

  • UPC Code: 78366970072
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 800 kcmil - 250 kcmil
  • Conductor Size CU (Primary, run, main, line): 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 800 kcmil - 250 kcmil
  • Conductor Size AL (Primary, run, main, line): 800 kcmil,750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil
  • Drive Size Main: 2-Jan
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 15/16
  • Wire Binding Torque: 500
  • Length (IN): 3.798
  • Length (mm): 96.4692
  • Width (IN): 3.428
  • Width (mm): 87.0712
  • Height (IN): 3.389
  • Height (mm): 86.0806
  • Weight (LB): 0.646
  • Max Insulation OD (IN): 1.335
  • Max Insulation OD (mm): 33.909
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Clear
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 2
  • Number of Poles: 1
  • Number of Ports / Wireways: 2
  • Number of Ports Main: 2
  • Number of Usable Ports: 2
  • Connector Amperage Rating CU (Derated where applicable): 555 Amps
  • Bag Quantity: 1
  • Upsell: PBTD-2-750-F

Overview

UPC 78366970072
Item Long Description Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 800 kcmil - 250 kcmil, Contains DE-OX, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Clear, 1 poles,
GTiN 00783669700725
Length 3.910 in
Width 3.340 in
Color Colorless
Voltage 600 Volt
Type PCT:MULTI TAP INS AL/CU
Material Aluminum
Stud Size 1/2 in
Number of Conductors 2
Conductor Size (2) 800-250 MCM
Applications Insulated Multi-Tap Connector
Height 3.300 in
Standard UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Temperature Rating 90 C
Family Brand Name ILSCO
Blade Dimensions 3.91 in L x 3.34 in W x 3.3 in H
Sub Brand ClearTap
Finish Tin Plated
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
