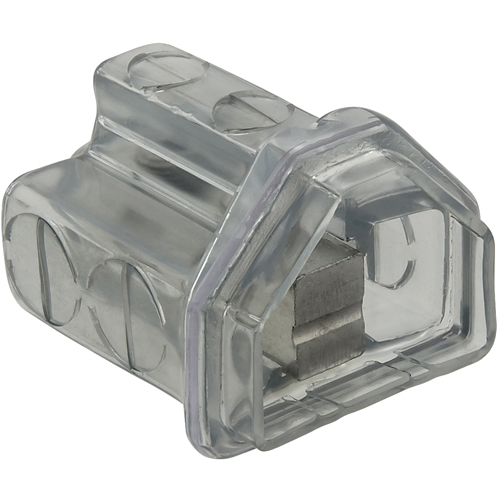

ILSCO PCT-4-600 UL/CSA Listed 600 MCM 4 AWG 4-Port Aluminum Insulated Mechanical Tap
$108.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PCT-4-600
North Coast Part # 16721

Specifications

  • UPC Code: 78366970066
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 4 Str
  • Conductor Size CU (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 4 Str
  • Conductor Size AL (Primary, run, main, line): 600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 13/16
  • Wire Binding Screw Size (mm): 33426.4
  • Wire Binding Torque: 375
  • Length (IN): 5.81
  • Length (mm): 147.574
  • Width (IN): 3.147
  • Width (mm): 79.9338
  • Height (IN): 3.115
  • Height (mm): 79.121
  • Weight (LB): 1.206
  • Max Insulation OD (IN): 1.172
  • Max Insulation OD (mm): 29.7688
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Plastisol
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Clear
  • Environmental Conditions: Cold temperature rated to -45⁰C
  • Flammability Rating: Insulation rated per UL 94
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Connection: Mechanical
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Number of Conductors: 4
  • Number of Poles: 1
  • Number of Ports / Wireways: 4
  • Number of Ports Main: 4
  • Number of Usable Ports: 4
  • Connector Amperage Rating CU (Derated where applicable): 475 Amps
  • Bag Quantity: 1
  • Upsell: PBT2-4-600-F

Categories

Overview

UPC 78366970066
GTiN 00783669700664
Length 5.730 in
Width 3.200 in
Color Colorless
Voltage 600 Volt
Type Insulated
Material Aluminum, Plastisol Insulation
Applications Insulated Multi-Tap Connector
Height 3.270 in
Standard UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Temperature Rating -45 to 90 C
Family Brand Name ILSCO
Sub Brand ClearTap
Finish Tin Plated
Number of Conductors 4
TC Connection Mechanical
Environmental Conditions Cold temperature rated to -45C
Conductor Size 600 kcmil - 4 AWG Stranded Aluminum (Primary/Run/Main/Line), 600 kcmil - 4 AWG Stranded
Connection Type Mechanical
Conductor Type Aluminum/Copper
Number of Ports 4
