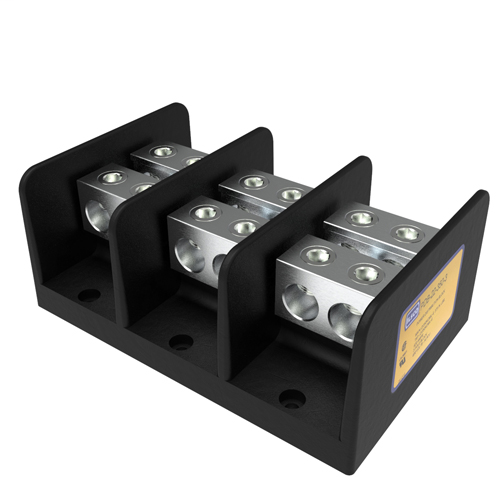

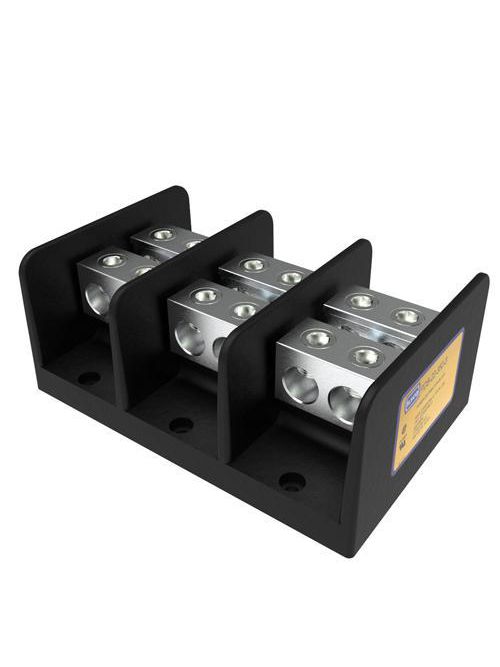

ILSCO PDB-22-350-3 620 Amp 600 Volt 6 AWG to 350 MCM Electrotinned Aluminum Alloy Power Distribution Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$235.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PDB-22-350-3
North Coast Part # 66969

Specifications

  • UPC Code: 78366971101
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 6 Str
  • Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 350 kcmil - 6 Str
  • Conductor Size CU (Secondary, tap, load): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 350 kcmil - 6 Str
  • Conductor Size AL (Secondary, tap, load): 350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
  • Drive Size Main: 8-Mar
  • Drive Type Main: Internal Hex
  • Drive Size Tap: 8-Mar
  • Drive Type Tap: Internal Hex
  • Mounting Bolt/Stud Size: 1/4/2020
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 4-Mar
  • Wire Binding Torque: 375
  • Length (IN): 5.531
  • Length (mm): 140.4874
  • Width (IN): 8.413
  • Width (mm): 213.6902
  • Height (IN): 3.5
  • Weight (LB): 3.4
  • Mounting Hole Diameter (IN): 0.28
  • Mounting Hole Diameter (mm): 7.112
  • Mounting Hole Spacing (IN): 4.75
  • Mounting Hole Spacing (mm): 120.65
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Enclosure Material: Valox
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E84782
  • UL / CULUS Specification: UL 1059 Recognized
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • RUS Listed: FALSE
  • Block Size: L
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 4
  • Number of Poles: 3
  • Number of Ports / Wireways: 12
  • Number of Ports Per Pole Primary: 2
  • Number of Ports Per Pole Secondary: 2
  • Connector Amperage Rating CU (Derated where applicable): 760 Amps
  • Bag Quantity: 1

Overview

GTiN 00783669711011
Color Black
Voltage 600 Volt
Type PDB:PWR DIST BLK AL/CU
Material Aluminum
Conductor Size 350 kcmil - 6 AWG Primary, 350 kcmil - 6 AWG Secondary
Applications Tap Connector
Standard CSA File Number: LR-29601,UL File Number: E84782,UL Specifications: UL1059
Connection Type Screw Terminal
Temperature Rating 90 C
Family Brand Name ILSCO
Blade Dimensions 144.46 mm W
Number of Poles 3 Pole
Sub Brand ClearChoice
Product UPC 78366971101
Finish Tin Plated
Number of Conductors 4
TC Connection Mechanical
Enclosure Valox
