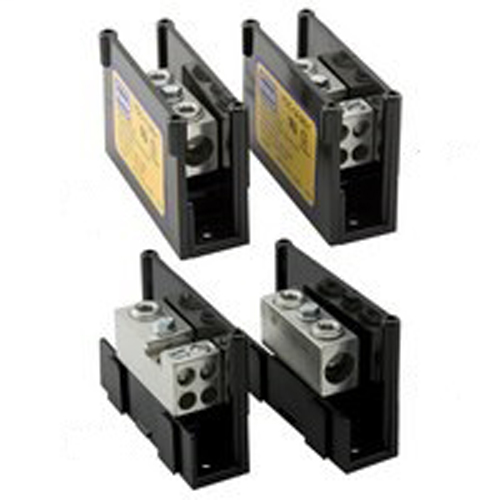

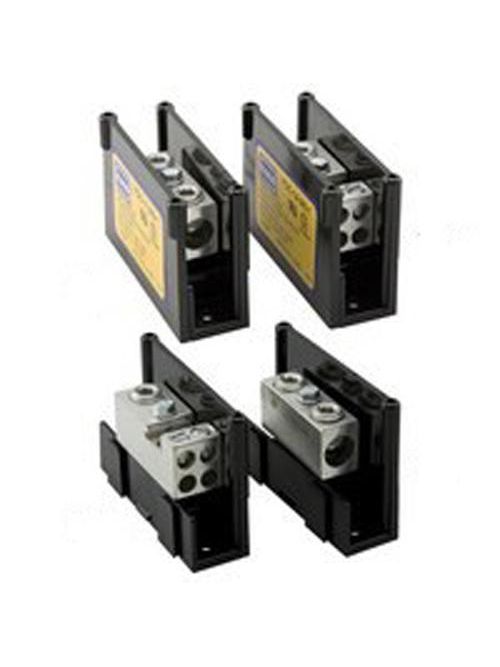

ILSCO PDC-11-2/0-3 AL MEC (P) 2/0-1
$74.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PDC-11-2/0-3
North Coast Part # 828132

Specifications

  • UPC Code: 78366994308
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 2/0 Str - 14 Str
  • Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 2/0 Str - 14 Str
  • Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Size Main: 16-Mar
  • Drive Type Main: Internal Hex
  • Drive Size Tap: 16-Mar
  • Drive Type Tap: Internal Hex
  • Number of Wire Binding Screws per Port: 1
  • Wire Binding Screw Size: 7/16,10,6
  • Wire Binding Torque: 120
  • Length (IN): 2.875
  • Length (mm): 73.025
  • Width (IN): 2.681
  • Width (mm): 68.0974
  • Height (IN): 2.142
  • Height (mm): 54.4068
  • Weight (LB): 0.332
  • Mounting Hole Diameter (IN): 0.201
  • Mounting Hole Diameter (mm): 5.1054
  • Mounting Hole Spacing (IN): 2.25
  • Mounting Hole Spacing (mm): 57.15
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Enclosure Material: Lexan
  • Wire Binding Hardware Material: Aluminum
  • Wire Binding Hardware Finish: Tin
  • Color: Black
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E84782
  • UL / CULUS Specification: UL 1059 Recognized
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • RUS Listed: TRUE
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Mounting Hole Type: Thru
  • Number of Conductors: 2
  • Number of Poles: 3
  • Number of Ports Per Pole Primary: 1
  • Number of Ports Per Pole Secondary: 1
  • Amperage Rating Per Pole: 175 Amps
  • Bag Quantity: 1

Overview

UPC 78366994308
GTiN 00783669943085
Color Black
Type PDC:SNAP BLOCKS (SMALL)
Material Aluminum
Applications Power Distribution Block, Modular Design
Temperature Rating 90 C
Family Brand Name ILSCO
Number of Poles 3 Pole
Sub Brand ILSCO
Finish Tin Plated
Number of Conductors 2
TC Connection Mechanical
Enclosure Lexan
Voltage null
