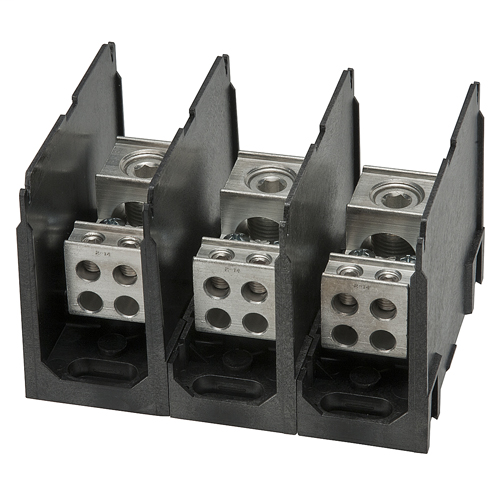

ILSCO PDH-14-2/0-3 AL MEC TB(P)(1)2
$83.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # PDH-14-2/0-3
North Coast Part # 1008917

Specifications

  • UPC Code: 78366971605
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Primary, run, main, line): 2/0 Str - 14 Str
  • Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range CU Stranded (Secondary, tap, load): 4 Str - 14 Str
  • Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Conductor Range AL Stranded (Secondary, tap, load): 4 Str - 14 Str
  • Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
  • Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • High SCCR Conductor Range Line: 2/0 Str - 6 Str
  • High SCCR Conductor Range Load: 4 Str - 14 Str
  • Drive Size Main: 16-May
  • Drive Type Main: Internal Hex,Slotted
  • Drive Type Tap: Slotted
  • Number of Wire Binding Screws per Port: 1
  • Length (IN): 0
  • Width (IN): 0
  • Height (IN): 0
  • Weight (LB): 0.82
  • Mounting Bolt/Stud Size (mm): 254
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Enclosure Material: Thermoplastic
  • Color: Black
  • Flammability Rating: UL 94 V0
  • Temperature Rating: 75°C
  • Voltage Rating: 600 V
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL File Number: E84782
  • UL / CULUS Specification: UL 1059 Recognized
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • ROHS Indicator: 3
  • RUS Listed: FALSE
  • Short Circuit Current Rating (SCCR): 100 kA
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Contains DE-OX: FALSE
  • Mounting Method: Panel
  • Mounting Hole Type: Thru
  • Number of Conductors: 5
  • Number of Mounting Holes: 2
  • Number of Poles: 3
  • Number of Ports Per Pole Primary: 1
  • Number of Ports Per Pole Secondary: 4
  • Connector Amperage Rating AL (Derated where applicable): 135 Amps
  • Connector Amperage Rating CU (Derated where applicable): 175 Amps
  • Fuse Required Class J Amp Rating: 200 Amps
  • Fuse Required Class T Amp Rating: 200 Amps
  • Fuse Required Class RK1 Amp Rating: 200 Amps
  • Fuse Required Class RK5 Amp Rating: 100 Amps
  • Fuse Required Class GA Amp Rating: 60 Amps
  • Fuse Required Class CC Amp Rating: 30 Amps
  • Bag Quantity: 1

Overview

UPC 78366971605
GTiN 00783669716054
Color Black
Voltage 600 Volt
Type PDH:PWR DIST BLK H/SCCR
Material Aluminum
Applications Power Distribution Block
Standard UL File Number: E84782,CSA File Number: LR-29601,UL Specifications: UL 1059
Family Brand Name ILSCO
Number of Poles 3 Pole
Sub Brand ILSCO
Finish Tin Plated
Number of Conductors 5
Temperature Rating 75 C
TC Connection Mechanical
Enclosure Thermoplastic
