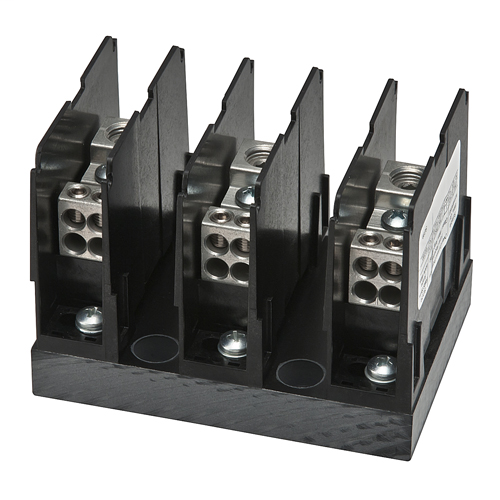

ILSCO PDL-11-2/0-3 AL MEC(P)(1)2/0-

Specifications

• UPC Code: 78366971645
• UNSPSC Code: 39121408
• Dual Rated: TRUE
• Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range AL Stranded (Primary, run, main, line): 2/0 Str - 14 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Size AL (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range CU Stranded (Secondary, tap, load): 2/0 Str - 14 Str
• Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• Conductor Range AL Stranded (Secondary, tap, load): 2/0 Str - 14 Str
• Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
• Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
• High SCCR Conductor Range Line: 2/0 Str - 6 Str
• High SCCR Conductor Range Load: 2/0 Str - 6 Str
• Drive Size Main: 16-Mar
• Drive Type Main: Internal Hex
• Drive Size Tap: 16-Mar
• Drive Type Tap: Internal Hex
• Number of Wire Binding Screws per Port: 1
• Length (IN): 0
• Width (IN): 0
• Height (IN): 0
• Weight (LB): 0.85
• Mounting Bolt/Stud Size (mm): 254
• Material: Aluminum
• Conductor Material: Copper,Aluminum
• Connector Finish: Tin
• Enclosure Material: Thermoplastic
• Color: Black
• Flammability Rating: UL 94 V0
• Temperature Rating: 75°C
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL File Number: E112158
• UL / CULUS Specification: UL 1953 Listed
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: 3
• RUS Listed: FALSE
• Short Circuit Current Rating (SCCR): 100 kA
• Connection: Mechanical
• Conductor Type: Solid,Stranded
• Contains DE-OX: FALSE
• Mounting Method: Panel
• Mounting Hole Type: Thru
• Number of Conductors: 2
• Number of Poles: 3
• Number of Ports Per Pole Primary: 1
• Number of Ports Per Pole Secondary: 1
• Connector Amperage Rating CU (Derated where applicable): 175 Amps
• Fuse Required Class J Amp Rating: 200 Amps
• Fuse Required Class T Amp Rating: 200 Amps
• Fuse Required Class RK1 Amp Rating: 200 Amps
• Fuse Required Class RK5 Amp Rating: 100 Amps
• Fuse Required Class GA Amp Rating: 60 Amps
• Fuse Required Class CC Amp Rating: 30 Amps
• Bag Quantity: 1
